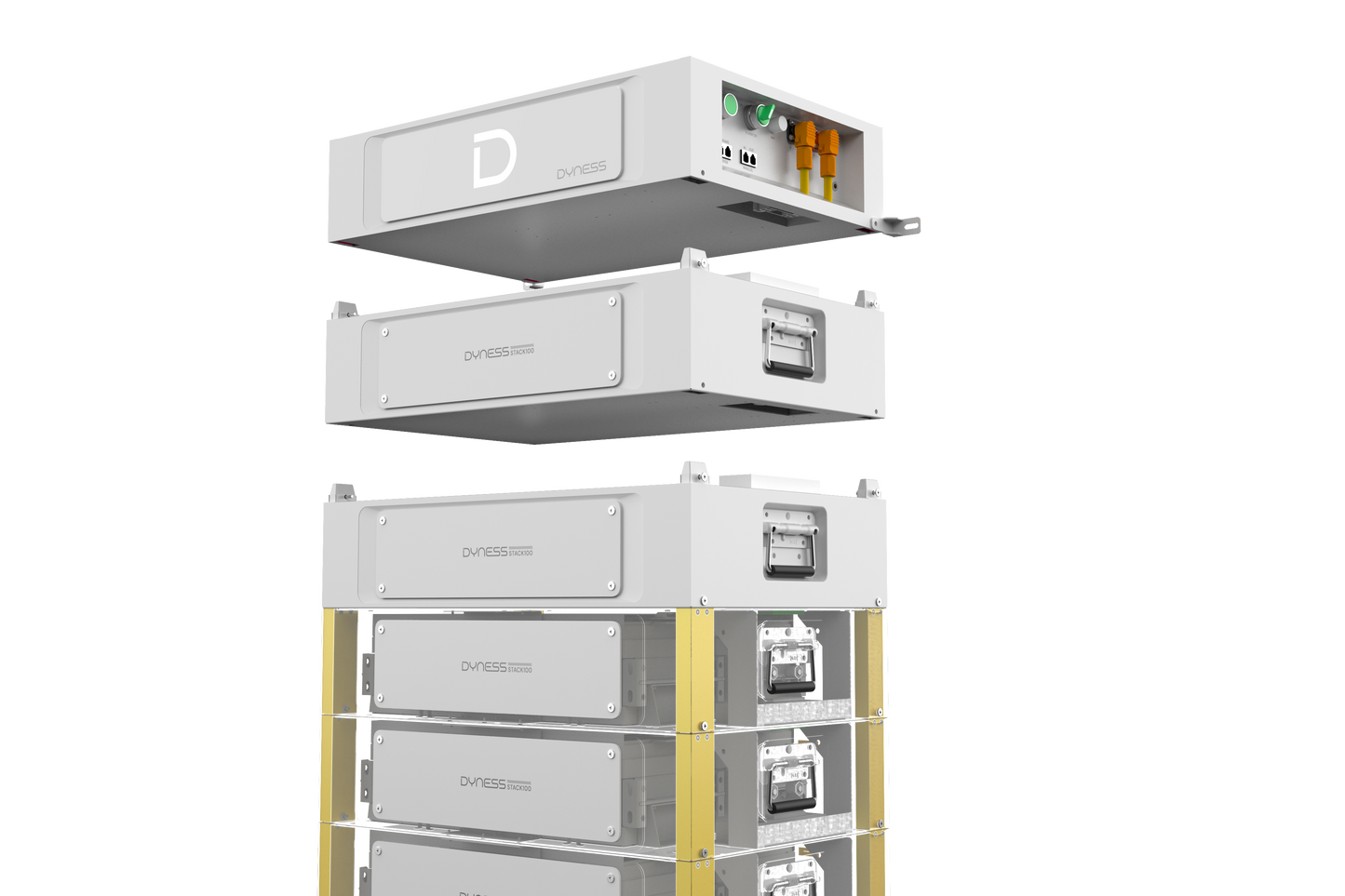

Dyness STACK100 5.12 Battery Module

Modular, easily expandable battery system battery module 5.12 kWh

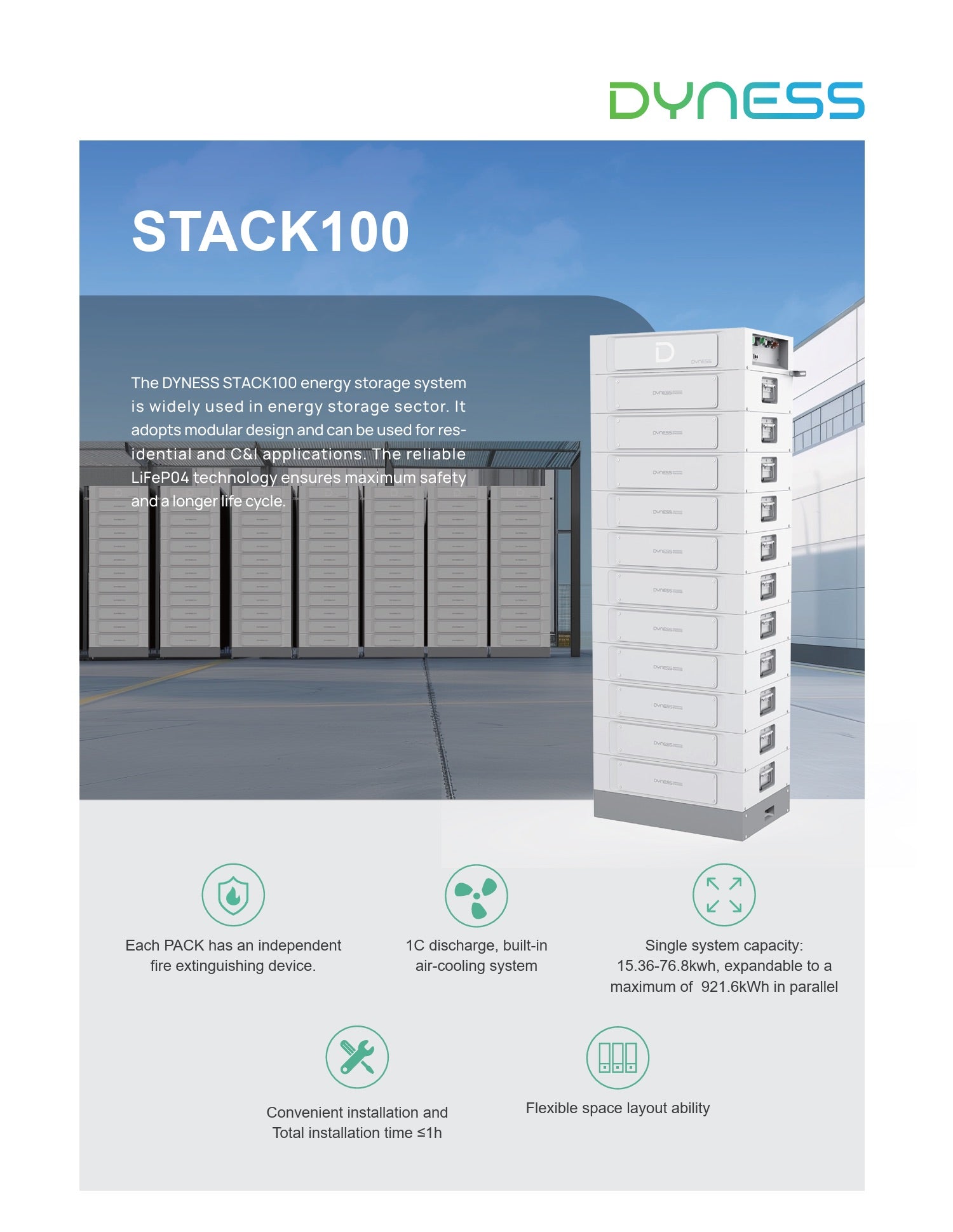

The Dyness STACK100 is a modular and scalable LFP energy storage system designed for professional use, perfectly suited for demanding applications such as residential buildings, commercial sites, light industrial environments, as well as for optimizing electricity spot prices and frequency reserve applications.

The system offers 1C charge and discharge power, reliable protection, and a long lifespan (≥8000 cycles).

DYNESS STACK100 5.12 kWh – A compact and powerful energy storage solution for B2B and demanding home use.

The DYNESS STACK100 5.12 kWh is a modular battery system that offers a compact yet powerful solution for energy storage. It is ideal for small and medium-sized applications that require a reliable and scalable energy storage system.

Key product features:

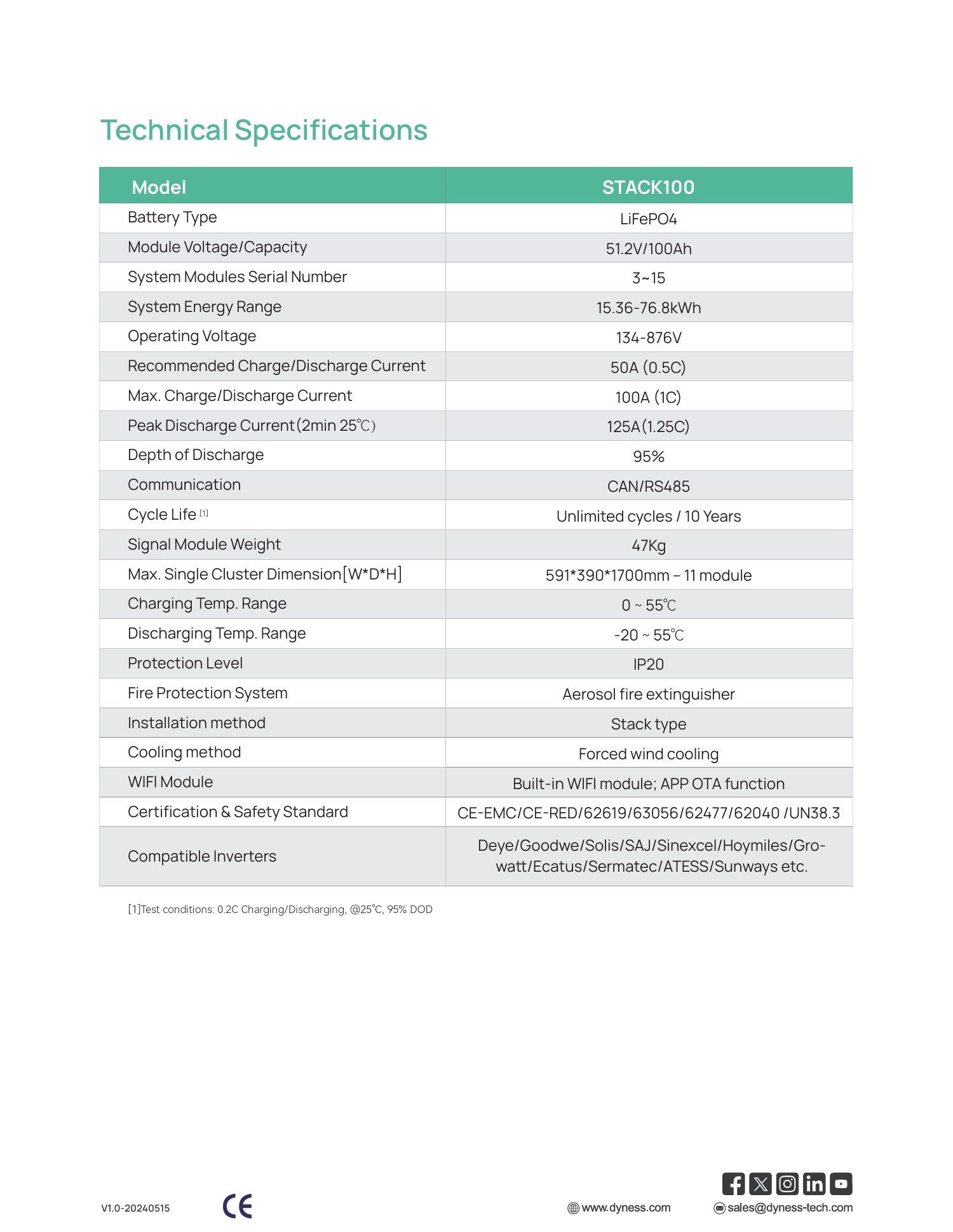

• Capacity: 5.12 kWh battery module

• Modular design: Expandable up to 921.6 kWh (12 towers in parallel)

• Power: 1C charge/discharge, peak power up to 125A (1.25C)

• Safety: Aerosol-based automatic extinguishing system, IP20 protection class

• Operating temperature: -20°C – +55°C, with internal automatic heating

• Easy installation: Plug & play principle, no cabling, installation in under an hour

• Compatibility: Works with Solis and Kostal inverters, among others

• Durability: 10-year warranty, no capacity degradation for 3 years

Delivery includes 2 x 2 m DC cables + 2 m communication cable.

Ideal for:

• Small professional solar power systems

• Backup power solutions

• Grid load balancing

• Small businesses, housing associations, properties, and demanding residential properties
