Dyness STACK100 SBDU + Base

Modular, easily expandable battery system BDU+Base (batteries sold separately)

Dyness STACK100 is a modular and scalable LFP energy storage system designed for professional use, perfectly suited for demanding applications such as residential buildings, commercial properties, light industrial environments, as well as electricity market optimization and frequency reserve applications.

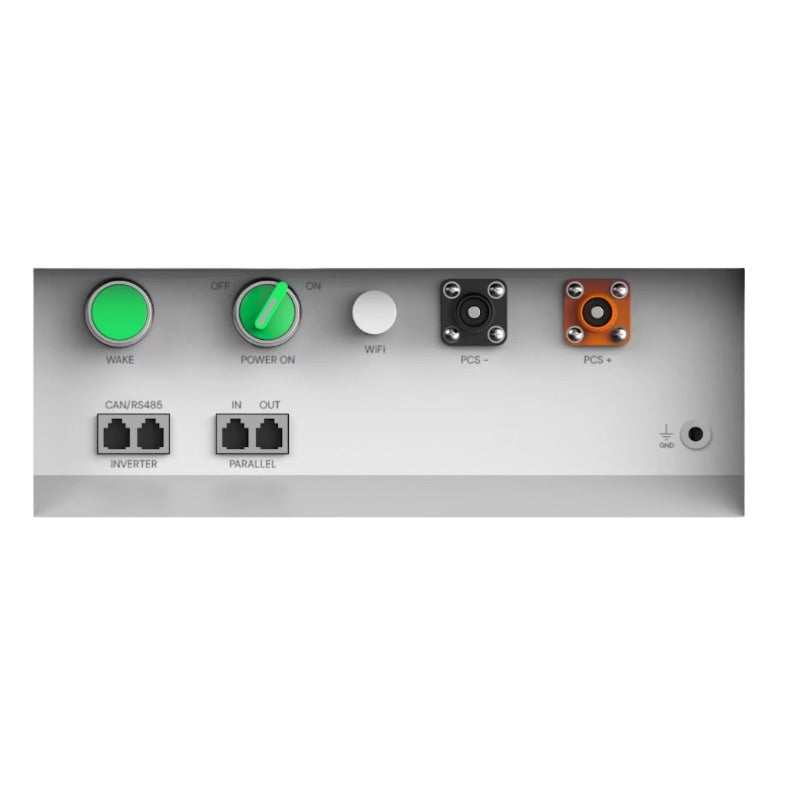

DYNESS STACK100 BDU + Base

A compact and efficient energy storage solution for B2B and demanding home use.

The DYNESS STACK100 15.36 is a modular battery system that offers a compact yet powerful solution for energy storage. It is ideal for small to medium-sized applications requiring reliable and scalable energy storage.

Key product features:

• Modular design: Expandable up to 921.6 kWh (12 towers in parallel)

• Power: 1C charge/discharge, peak power up to 125A (1.25C)

• Safety: Aerosol-based automatic extinguishing system, IP20 protection class

• Operating temperature: -20°C – +55°C, internal automatic heating

• Easy installation: Plug & play principle, no cabling, installation in less than an hour

• Compatibility: Works with Solis and Kostal inverters, among others

• Durability: 10-year warranty, no capacity degradation for 3 years

Includes 2 x 2 m DC cables + 2 m data cable.

Ideal for:

• small professional solar power systems

• backup power solutions

• grid load balancing

• residential properties, cottages, and small businesses

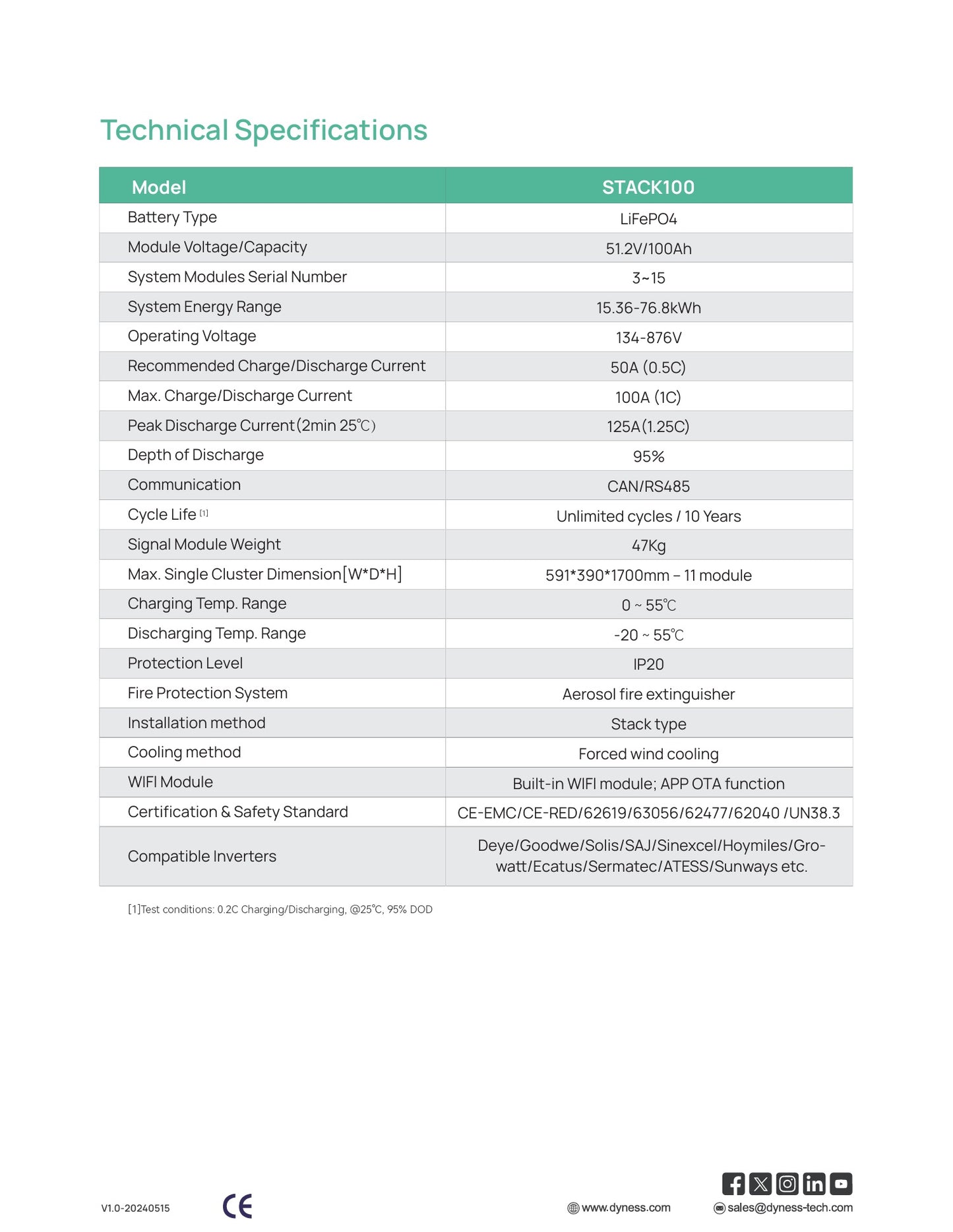

Technical specifications for batteries (not included)

• Battery type: LiFePO4 (LFP)
• Nominal energy: 5.12 kWh per module
• Usable energy: 4.864 kWh
• Nominal current / 1C power: 100 A / 5.12 kW
• DOD: 95 %
• Operating temperature: –20…55 °C
• Protection class: IP20
• Communication: CAN / RS485
• Warranty: 10 years

Sold only with Stack100 batteries!
