Shelly UNI Plus Control module for WiFi network

Turn any home device into a smart device!

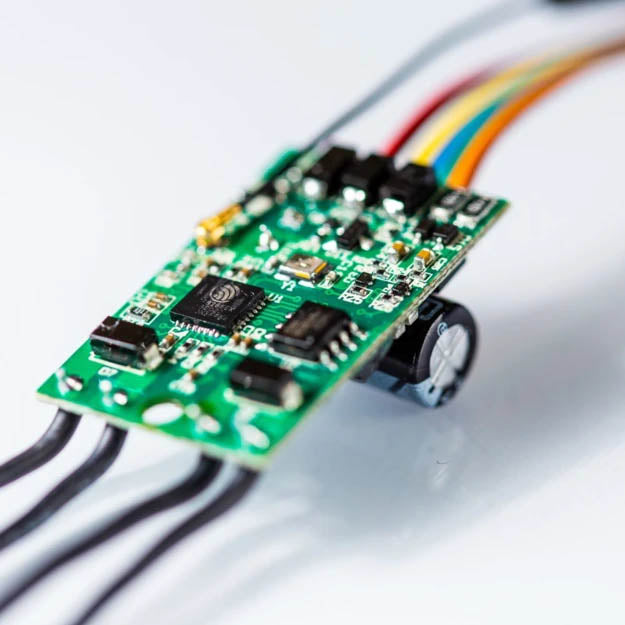

The compact Shelly Uni Plus controller module is so small that it can fit almost anywhere. It is perfect for controlling or monitoring low-voltage devices or sensors. Although there is no plastic housing around the controller module, it is covered with a transparent film that keeps it insulated and protected.

Shelly smart home products support Amazon Alexa and Google Home, Android and iOS. With voice control activated, you can also control Shelly smart products using your voice. Several other smart home systems/platforms are also supported (check compatibility with each product). Shelly products connect to a wireless Wi-Fi network and do not require a separate home automation controller to operate.

Features

• Wireless WiFi control.
• Voltage, two channels: AC: 12-24V, DC: 12-36V.
• Inputs, two digital: DC: 2.2-36 V, AC: 12-24V
• Outputs, two potentiometer-free: 36 VAC and 24VDC (max. 100 mA/channel)
• Voltage measurement: 1 ADC - two ranges 0-12V and 12-30V
• Wireless standard: Wifi 802.11b/g/n, 2.4 GHz
• WiFi range: 50 m outdoors/30 m indoors (depending on building materials)
• Supports up to 3x temperature sensors (DS18B20) or 1х humidity sensor (DHT22)
• Amazon Alexa, Google Assistant support
• Shelly Cloud app (Android and iOS)
• Operating temperature: 0ºC to +40ºC, indoor use only
• Dimensions: 20 x 33 x 13 mm

Installation

• Installation only by a certified electrician.
