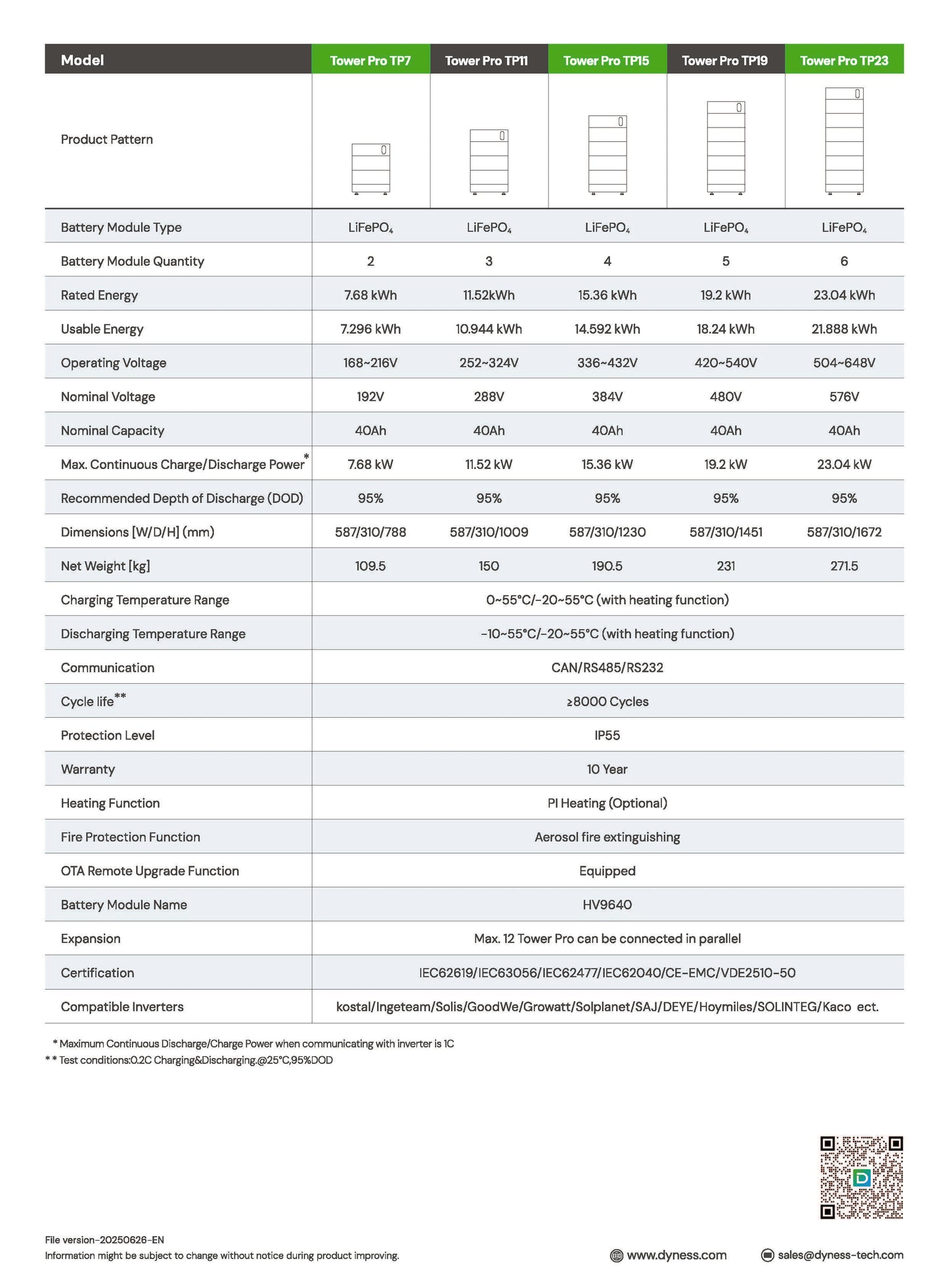

Dyness Tower Pro T19 Battery tower 19.2kWh

The Dyness Tower series is a modular energy storage solution suitable for households, housing associations or smaller commercial sites. The tower can have 2-6 modules in series, and up to 12 towers can be connected in parallel. The total available capacity is therefore 7.7-277kWh.

Supported inverters include Kostal, Ingeteam, Solis, Goodwe, Solplanet, Deye, Hoymiles, Solinteg, Sinergy, etc. Full list of supported models: https://dyness.com/inverter-matching-list

The Dyness Tower Pro BDU (Battery Distribution Unit) is a central part of the Tower Pro energy storage system. It acts as the system's intelligent control center, enabling safe, efficient and user-friendly energy management.

Key features

• LED display: Clear user interface for real-time status monitoring
• Remote updates and monitoring: OTA (Over-the-Air) support enables software updates and system management remotely
• 1C charging and discharging: Enables fast and efficient energy transfer
• Integrated fire suppression system: Aerosol-based solution significantly improves safety
• Built-in heater Enables operation down to -20°C
• Modular design: Easy installation and expandability up to 12 clusters (up to 276.48 kWh)
• The BDU unit combines technical performance and practicality, making it an ideal choice for energy storage solutions for both households and businesses.

Dyness HV9640 – Powerful and safe battery module for the Tower Pro system

The HV9640 is a high-voltage battery module from the Dyness Tower Pro series, which forms the core of the system's energy storage. It utilizes LiFePO₄ cell technology, which offers long life, high efficiency and excellent safety. The HV9640 module is specifically designed for demanding applications that require reliable and scalable energy storage - whether it is an industrial site, commercial property or a smart home solution. Dyness HV9640 - when energy storage requires performance, safety and flexibility.

Key features

• Nominal capacity: 40 Ah
• Voltage range: 168–648 V (depending on the number of modules)
• 1C charging and discharging: Enables fast and efficient energy transfer
• Aerosol-based fire suppression system (optional): Responds in less than 5 seconds
• PTC heating function: Allows operation down to -20°C
• Modular design: Up to 12 Tower Pro units in parallel, capacity up to 276.48 kWh
• Easy installation: Plug & Play system, installation in up to 15 minutes
• Remote monitoring and updates: OTA support and compatibility with multiple inverter brands
