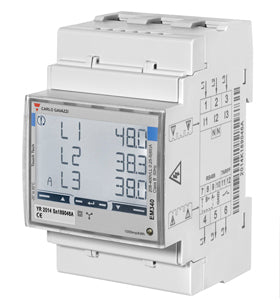

Energy meter EM340-DIN.AV2.3.X.01.X

Energy analyzer, 3-phase, 65 A, lk B, pulse output, tariff (2), 3-DIN module, backlit LCD touch screen, operating voltage: self-powered
Three-phase energy meter with backlit LCD display and integrated touch keyboard. Intended especially for active energy measurements and cost allocation in applications up to 65 A (direct connection) with 2-tariff measurement option. It can measure imported and exported energy, or can be programmed to consider only imported energy. Housing for DIN rail mounting, protection class IP51 from the front. The meter is equipped with a pulse output proportional to the measured active energy.

Characteristics

• Installation method: DIN rail adapter
• Energy type: active and reactive power
• Approval: National
• Form of expression: digital
• Calibrated: Yes
• Width (number of module slots): 3
• Lock code: Yes
• Maximum current (Imax): 65 A
• Model / Type: direct measurement
• Rated voltage (Un): LL 208 ... 400 V
• Rated voltage (Un): NL 113 ... 265 V
• Rated current (In): 5 A
• Meter type: electronic
• Polarity: 3-wire/4-wire
• Number of numbers (counter): 8
• Pulse output: electric
• Type of pulse: S0
• Pulse frequency: 100 ... 1500 Imp/kWh (kvarh)
• Applies to: acquisition/input
• Frequency: 45 ... 65 Hz
• Anti-rollback: No
• Tariff control: external
• Tariff type: 2-tariff
• Accuracy class: B
• Package dimensions (L x W x H) 140 x 107 x 70 mm
• Warranty 24 months
