Easee Charge Up Charging Station 11kW + Easee Equalizer Package (Without HAN port)

New Easee, TUV approved. Dynamic load management for all applications.

1 pc Easee Home Charging Station + Easee Equalizer for dynamic load management!

A version that does not require a HAN port for the electricity meter!

For more information about Easee load management and its installation without a HAN port in English:

https://support.easee.com/hc/en-gb/articles/4415347233937-Installing-the-Equalizer-without-smart-meter-

The compact and stylish new Easee Charge Up Charging Station for fast and economical electric car charging. The Easee App is very easy to use and allows you to manage your charging. More information:

https://easee.com/fi/tarvikkeet/app/

Easee Charge Up is an advanced smart charger for electric cars. The charger is Norwegian and one of the most advanced in the world. You can control the charger from anywhere with your smartphone. When charging an electric car, you don't have to worry about technical features, the Easee Lite charging station always adapts to the needs of the car, while the device produces the maximum possible available power.

Easee Charge Up Charging Station is IP54 certified and designed to withstand the most demanding weather conditions. Compact and lightweight charger with a modern design. The charging station is available in black and white.

The smart charger is suitable for all electric vehicles. The charger has a fully dynamic charging power of 1.4 - 11kW. The Easee Charge Up charging station can also be installed to automatically share the load between them.

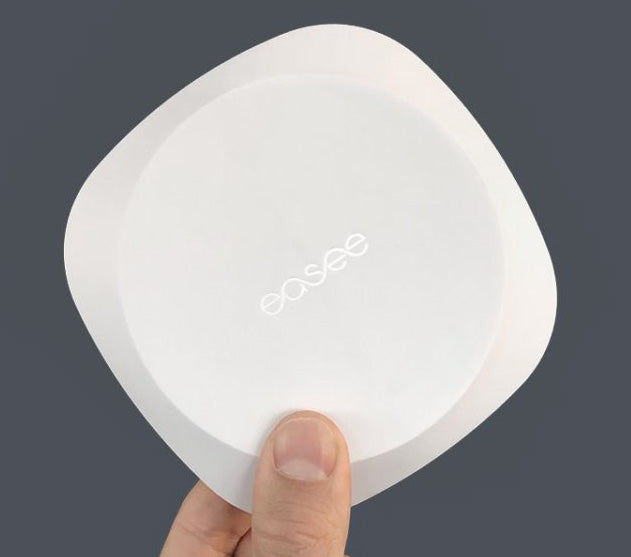

Eazee Equalizer enables dynamic load management wirelessly between your property and Easee Lite charging stations. Equalizer continuously measures your electricity consumption and load in real time, and directs all available electricity to your vehicle by communicating with your Easee Home charging station. If your energy meter has a HAN port (RJ45 or RJ12), then choose the Equalizer basic version and the Easee station in your desired color. This product is suitable for all electricity meters, but requires a little more installation work.

• Model: Easee Charge Up Charging Station 1.4 - 11 kW
• Type: Fixed home charging station for electric vehicles
• Connector car: Type2
• Plug: With plug, needs cable
• Place of use: Home charging & Housing associations
• Power: 1.4 - 11kW fully dynamic charging power (1 and 3 stage charging)
• Current: max 16A
• Size: 290mm*215mm*125mm
• Charger weight: 1.5kg
• Color: Black
• Voltage: 230-400V
• Residual current circuit breaker: B
• Connection: Wireless connection (4G, Wifi, RFID, NFC and Bluetooth)
• The device has an integrated RFID reader and eSIM
• Smart control: Yes
• Manufacturer: Easee
• Certificates: TUV CE
• Warranty 2 years (extendable to 5 years)

Equalizer package with direct measurement

• 1pc Easee Equalizer (HAN port RJ45)
• 1pc Eastron SM630
• 1pc 24V power supply (Tufvasson or similar)
• 1pc RJ12 cable
• 1 RJ12 terminal for easier installation
• WIFI 2.4 Ghz protected required

Equalizer package with power transformers

• 1pc Easee Equalizer (HAN port RJ45)
• 1pc Eastron SM630MCT indirect 3-phase meter
• 3pcs current transformer (CT)
• 1pc 24V power supply (Tufvasson or similar)
• 1pc RJ12 cable
• 1 RJ12 terminal for easier installation
• WIFI 2.4 Ghz protected required

About installation

A residual current device (RCD) must always be installed in the electrical panel when installing the Easee Charge Up charger.

Before installation, make sure that the power grid has enough capacity for the charging station. The installation and configuration of the device must be left to a professional electrician. If you purchase the installation from us, there will be a metered load management installation surcharge of 300e in addition to the normal installation. The installation is reasonably demanding and the installer should have experience in metered load management installation as well as Easee Equalizer installation.

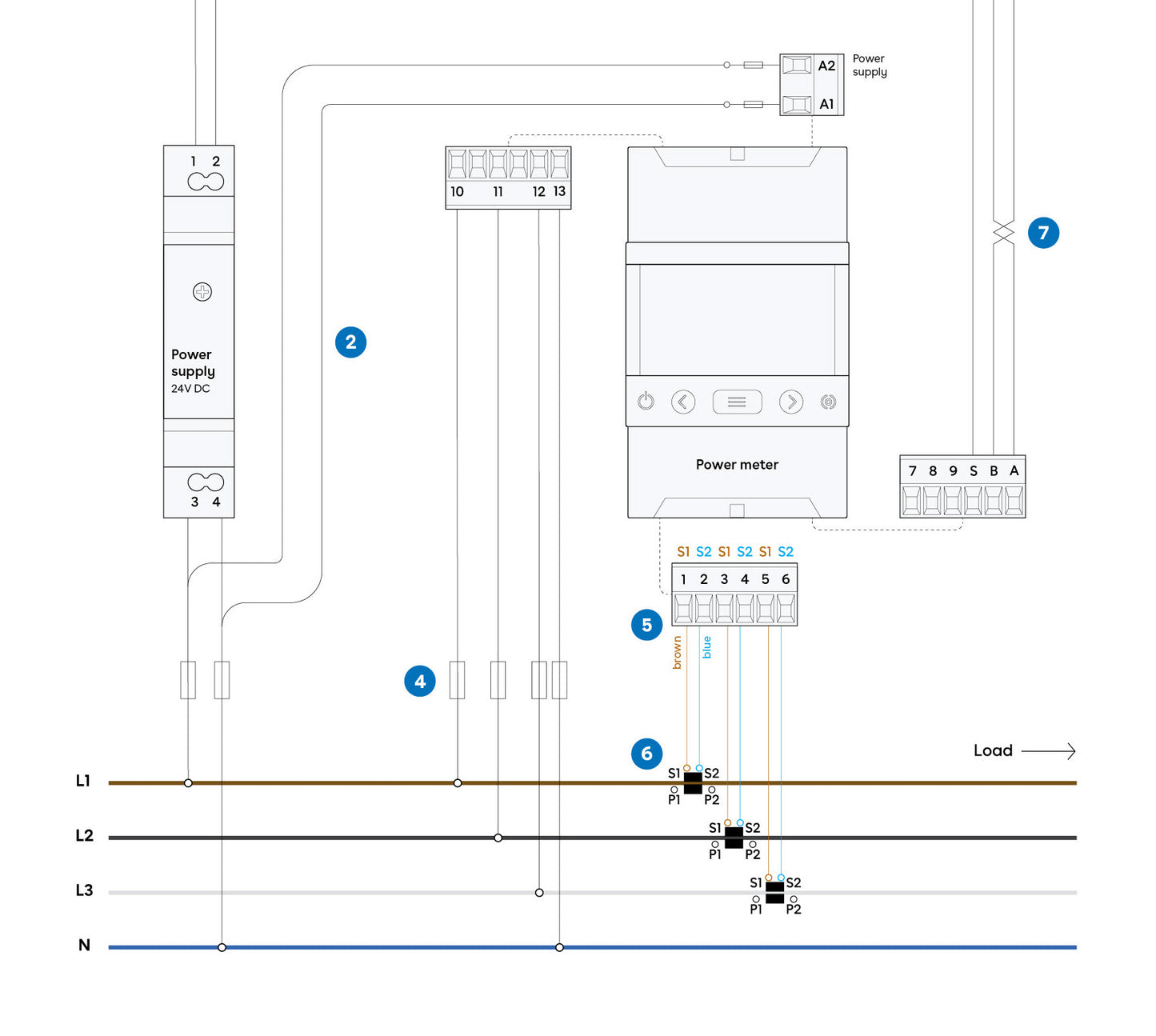

When installing the Equalizer, the Modbus meter must be connected at the installation site according to the installation diagram and installation instructions supplied with the package.

It is worth choosing between direct measurement or measurement with current transformers based on the installation location. There is no difference in the properties, but there may be a difference in the speed of installation. If you order the installation from us, we will take both versions with us and see which one is more suitable at the installation location. So when ordering the installation, the choice of version does not matter.

The Easee charging station can be installed indoors or outdoors. The Equalizer must be installed in a place protected from the weather.
