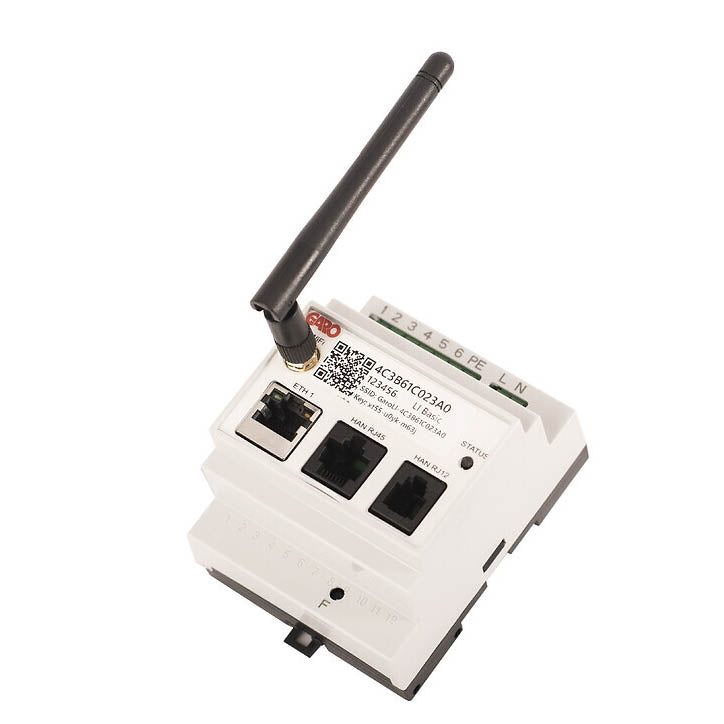

Garo Entity BASIC Load Control Unit

Entity series charging stations can be equipped with a load management unit.

The intelligent system ensures that the load on the property does not exceed limits and the charging power of the charging stations is adjusted to the current electricity consumption of the property. Load management ensures that the main fuse does not blow. Garo Entity Pro charging stations also support phase balancing, so the available electricity is distributed more evenly, ensuring a more balanced charging. If the available power is not enough for 3-phase charging, the charging station automatically switches to 1-phase charging, using the phase with the most reserve.

Features

• The Garo Entity load management unit is intended for DIN rail mounting
• Load Management Unit, Entity Basic, LAN, WiFi Mesh
• Inputs: HAN bus (RJ12/RJ45), Current transformers 333mV, Antenna connection.
• Dimensions: 104 x 89 x 78mm (Height x Width x Depth)
• Weight: 0.6 kg
