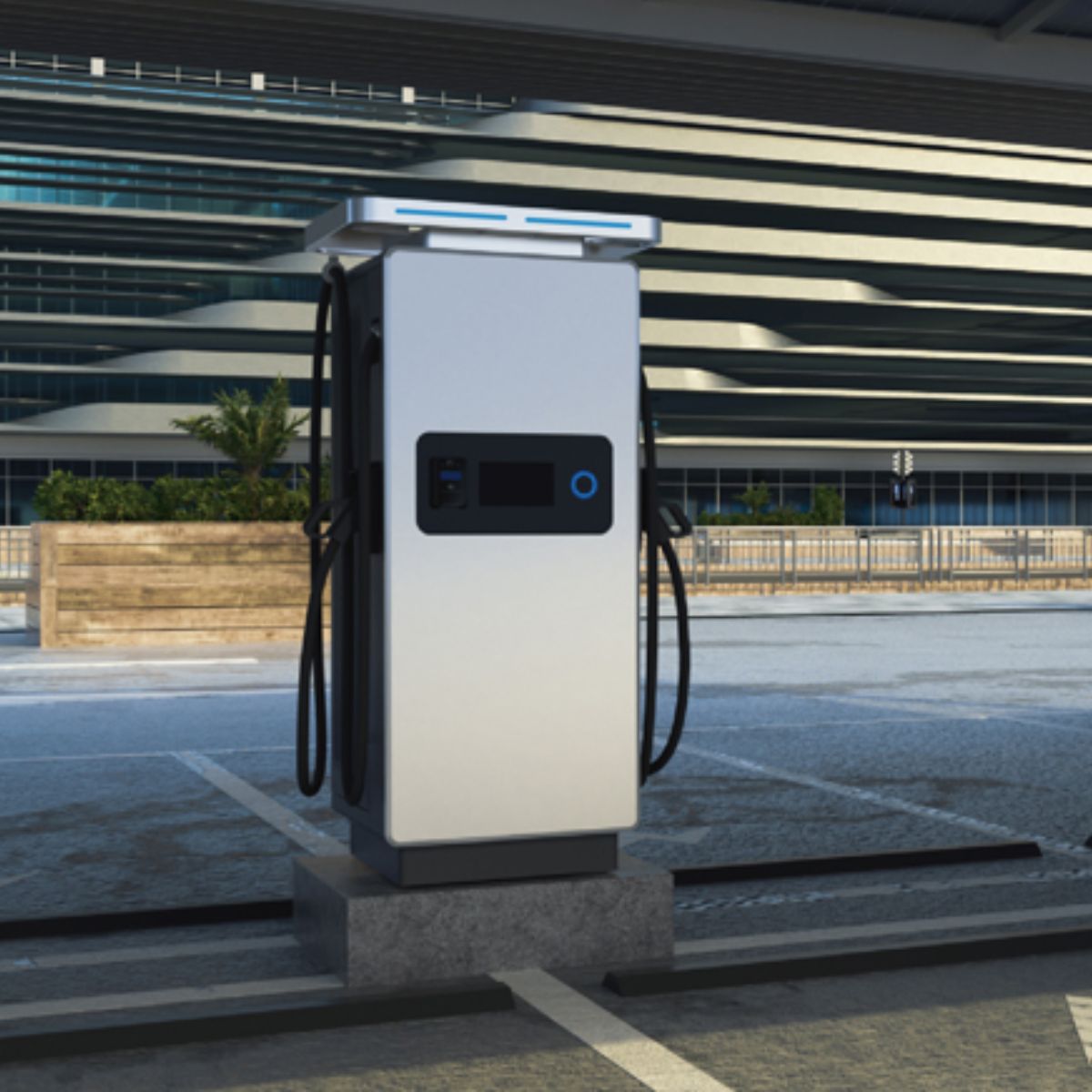

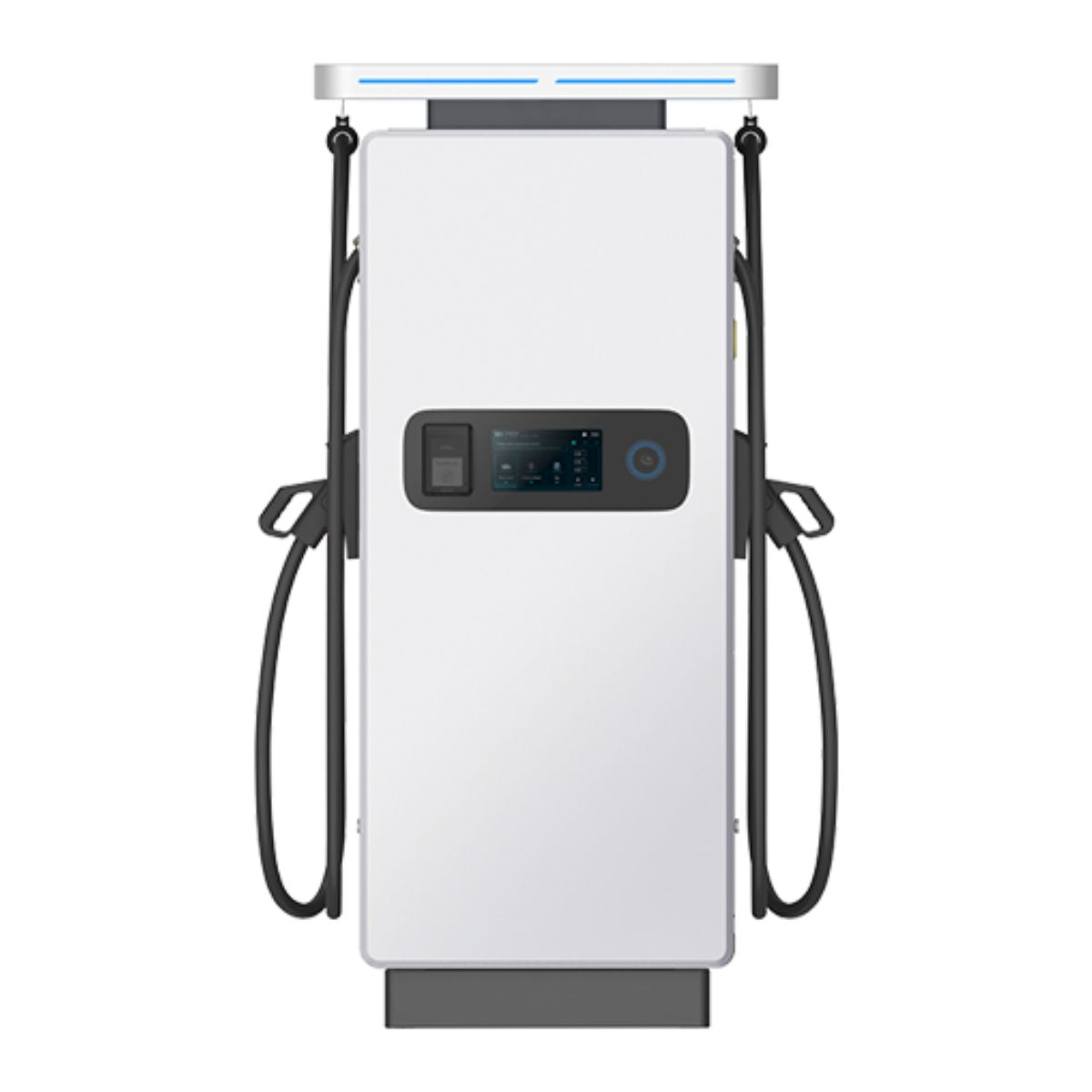

Sungrow 180kW IDC180E Power charging station

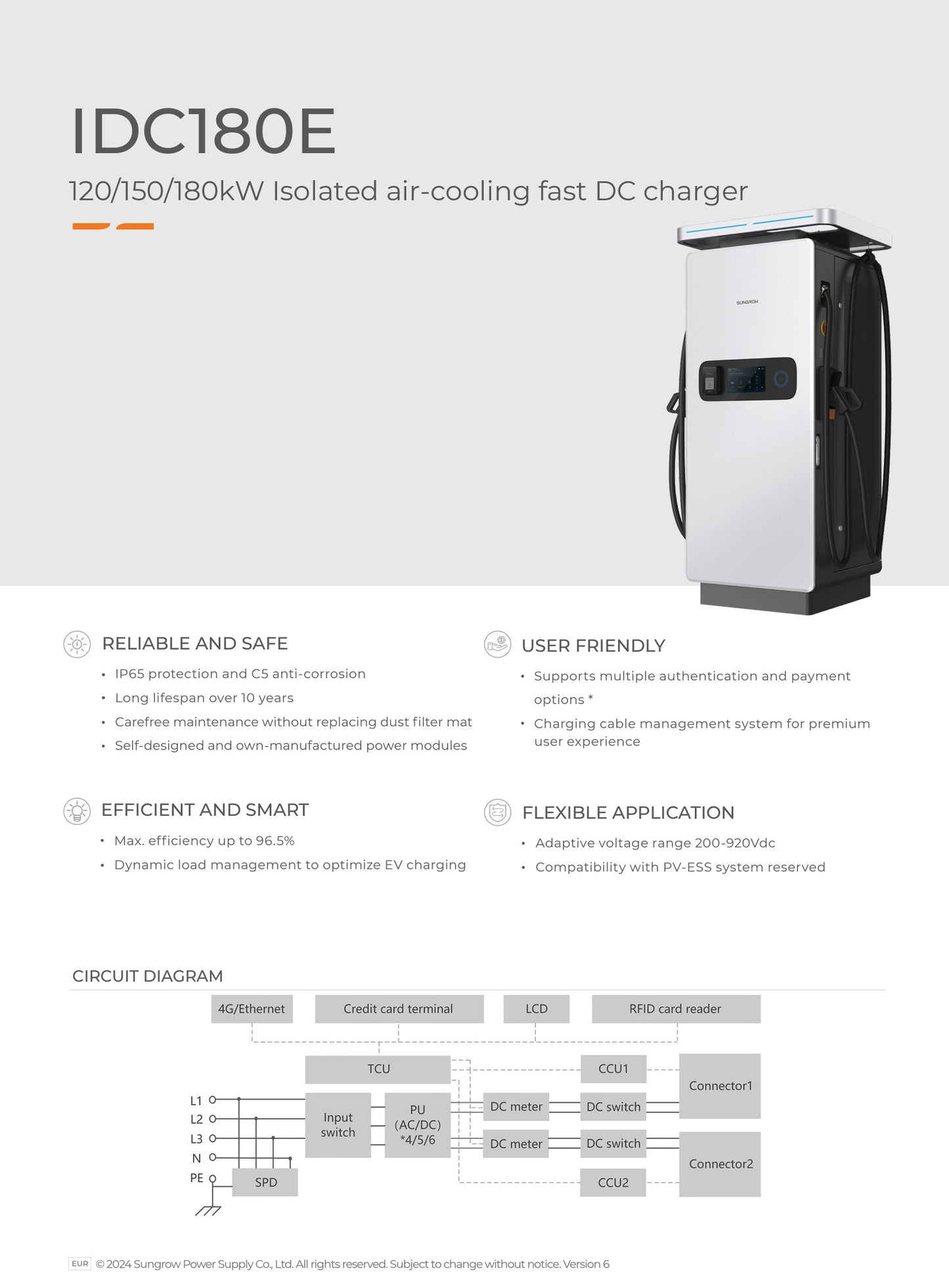

180 kW Fast Charging DC Charging Station

Designed for the demanding charging needs of electric vehicles, this reliable and efficient fast charger offers excellent performance and durability with a lifespan of over 10 years, while its IP65 protection and C5 corrosion protection ensure safe use in all conditions.

Reliable and safe
- IP65 protection and C5 corrosion protection
- Over 10 years of service life
- Maintenance-free with no need to replace the dust filter
- Self-designed and self-manufactured power modules

User-friendly
- Supports multiple identification and payment options
- Charging cable management system improves user experience

Powerful and intelligent
- Maximum efficiency up to 96.5%
- Dynamic load management optimizes the charging process

Flexible suitability
- Adaptive voltage range 200-920 Vdc
- Ready for compatibility with photovoltaic and energy storage systems

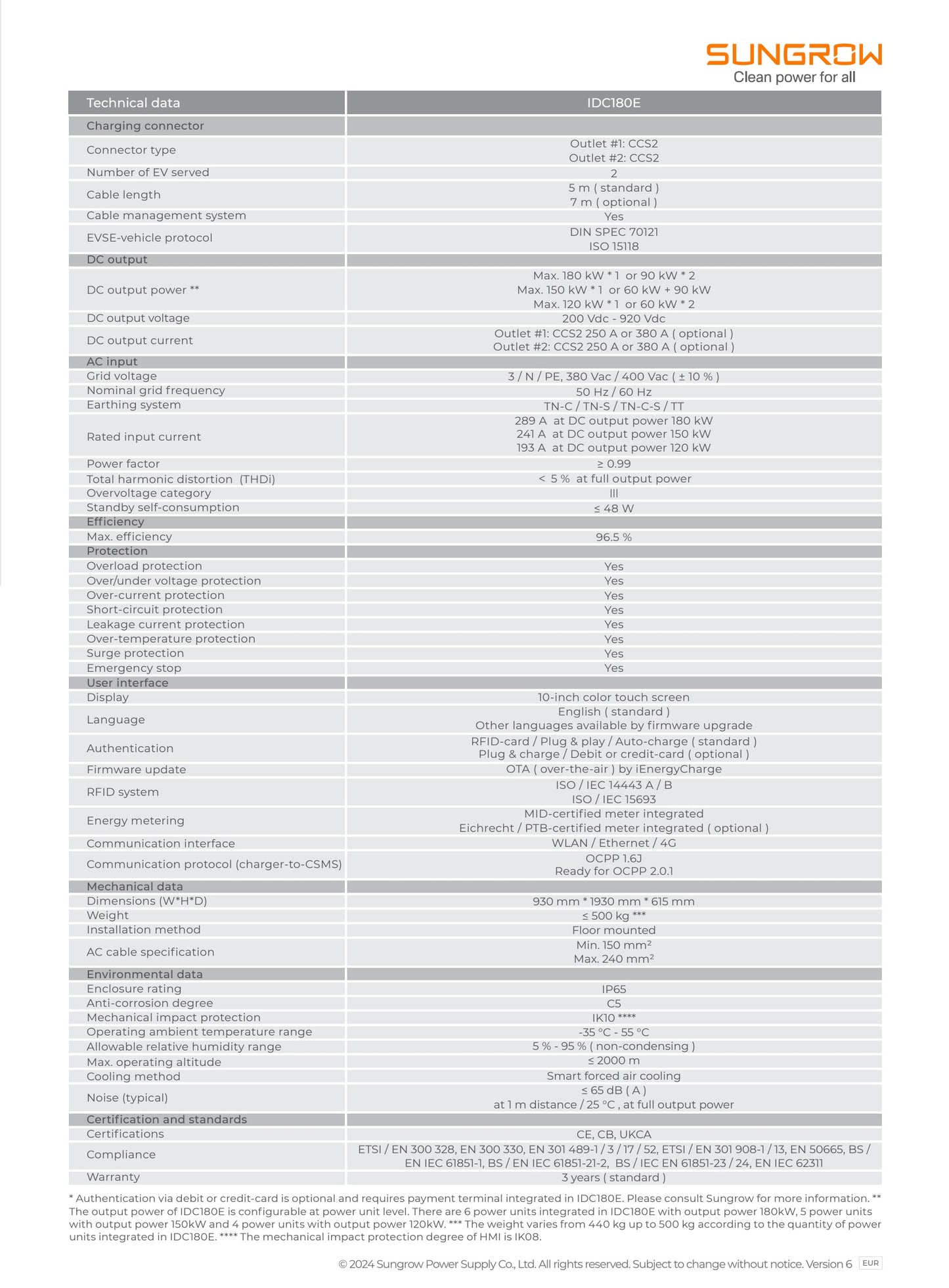

Specifications

• DC output power: Maximum power: 180 kW
• DC output voltage: 200 Vdc - 920 Vdc
• Connector 1: CCS2
• Connector 2: CCS2
• Mains power: 3 / N / PE, 380 Vac / 400 Vac (± 10%)
• Nominal mains frequency: 50 Hz / 60 Hz
• Earthing system: TN-C / TN-S / TN-CS / TT
• Rated input current: 289 A (180 kW), 241 A (150 kW), 193 A (120 kW)
• Power factor: ≥ 0.99
• Total harmonic distortion current (THDi): ＜ 5% at full power
• Overvoltage category: III
• Standby power consumption: ≤ 48 W
• Efficiency: Up to 96.5%

User interface:

• Display: 10-inch color touchscreen
• Language: English (default), other languages ​​available via firmware update
• Identification: RFID card / Plug & play / Auto-charge (default)
• Optional authentication: Plug & charge / Debit or credit card
• Firmware updates: OTA (over-the-air) via iEnergyCharge app

Dimensions and other information:

• Dimensions (LKS): 930 mm 1930 mm 615 mm
• Weight: ≤ 500kg
• Installation method: Floor-mounted
• AC cable specification: Min. 150 mm², Max. 240 mm²
• Housing: IP65 protection
• Corrosion protection: C5
• Mechanical impact protection: IK10
• Operating temperature range: -35°C - 55°C
• Relative humidity: 5% - 95% (non-condensing)
• Operating altitude: ≤ 2000 m
• Cooling: Intelligent forced air circulation
• Noise level: ≤ 65 dB (A) at 1 meter / 25 °C, full power

Certificates and standards:

• Certificates: CE, CB, UKCA
• Compatibility:
  - ETSI / EN 300 328, EN 300 330, EN 301 489-1 / 3 / 17 / 52
  - ETSI / EN 301 908-1 / 13
  - EN 50665
  - BS/EN IEC 61851-1, BS/EN IEC 61851-21-2
  - BS/IEC EN 61851-23/24
  - EN IEC 62311

This powerful and versatile charger is ideal for both private and commercial charging points. Choose a durable and high-performance solution for charging electric vehicles, and ensure an optimal charging experience for users. A major manufacturer with all spare parts in stock in Europe.
