Wallbox Pulsar Max charging station 22kW (7m cable)

Wallbox Pulsar Max - Smart and powerful EV home charger. Easy Wallbox App.

Also available with dynamic load management: Wallbox Pulsar Max + Power Boost meter

An updated model of its predecessor, the Wallbox Pulsar Plus! In addition to already functional features, the new model focuses on appearance, effortlessness, and cost-effectiveness. The Pulsar Max model has an even faster processor, improved installation ease (faster and cheaper installation), and updated device aesthetics (matte finish).

The Wallbox Pulsar Max is designed to make daily EV charging easier than ever. Pulsar Max retains the advanced performance of its predecessor models. Pulsar Max works seamlessly with all Wallbox energy management solutions, including solar charging.

Designed for demanding conditions, both indoor and outdoor use with IP55/IK10 protection level

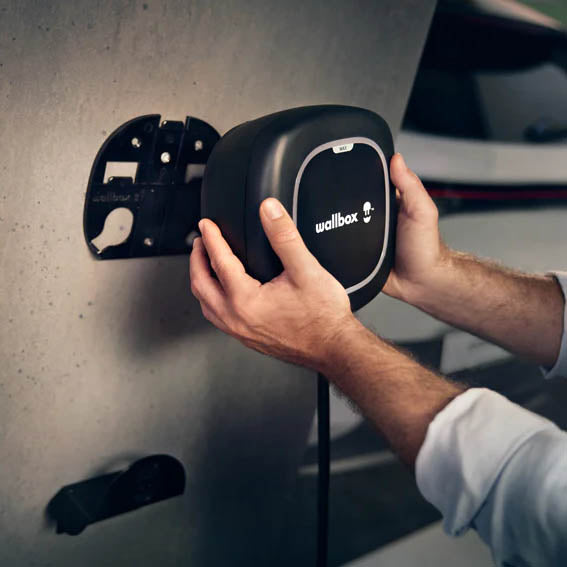

• Easy installation, save time and costs. The charging station's easy-to-install design saves both time and installation costs.

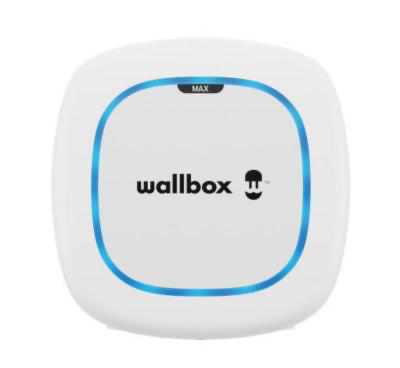

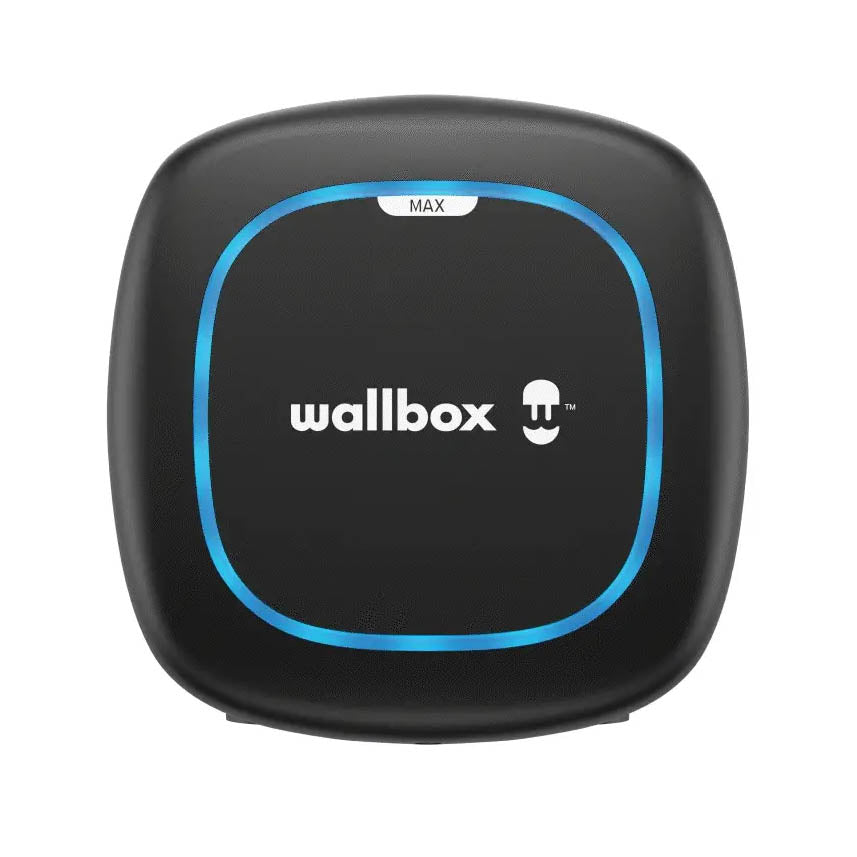

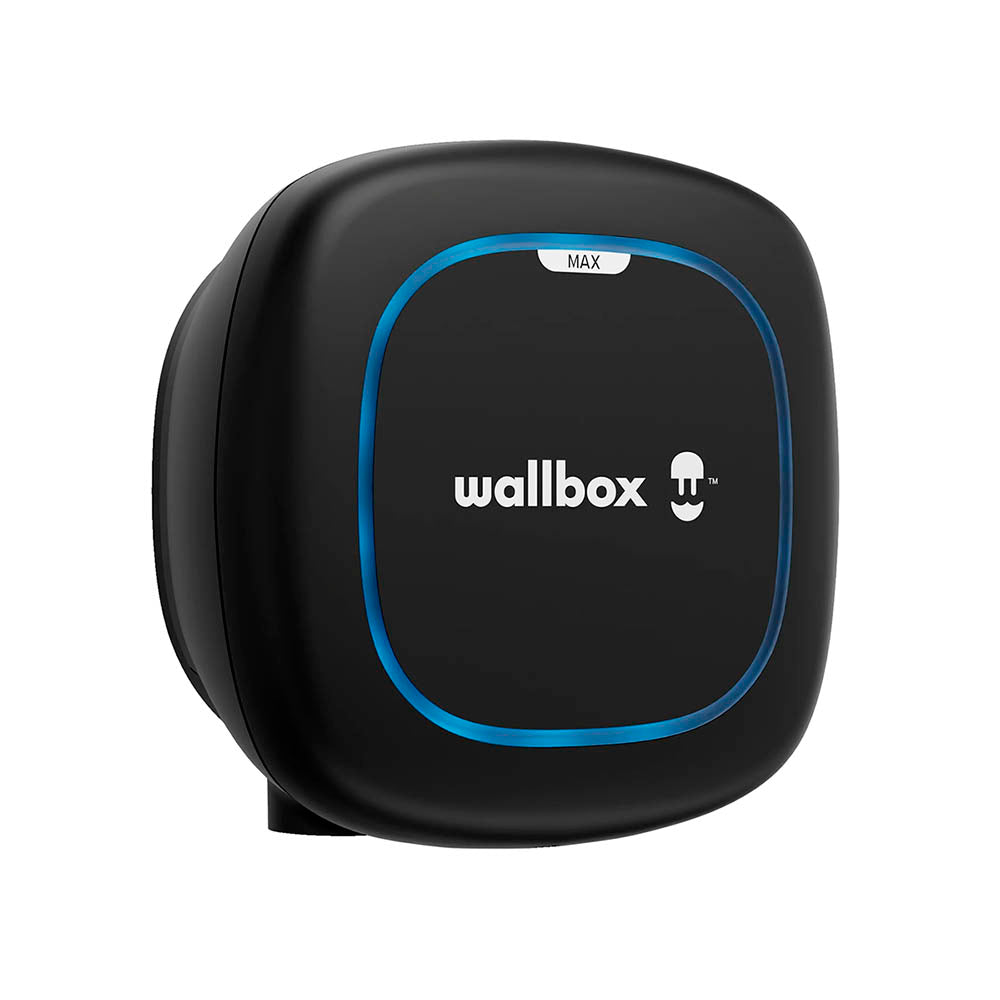

• Updated appearance, stylish matte finish. The scratch-resistant finish ensures a premium look.
• Smart savings and solar charging compatible. Use intuitive scheduling or charge with solar energy and save.

Wallbox Pulsar Max is a compact and versatile charging station, perfectly suited for home charging. Suitable for charging all fully electric and hybrid cars with a maximum power of 22kW (3-phase). The MyWallbox app is available for the charger, allowing you to monitor charges and manage the charger's status.

Key features

• Powerful charging, up to 22kW fast charging.
• Compact, weighs only 1.3kg.

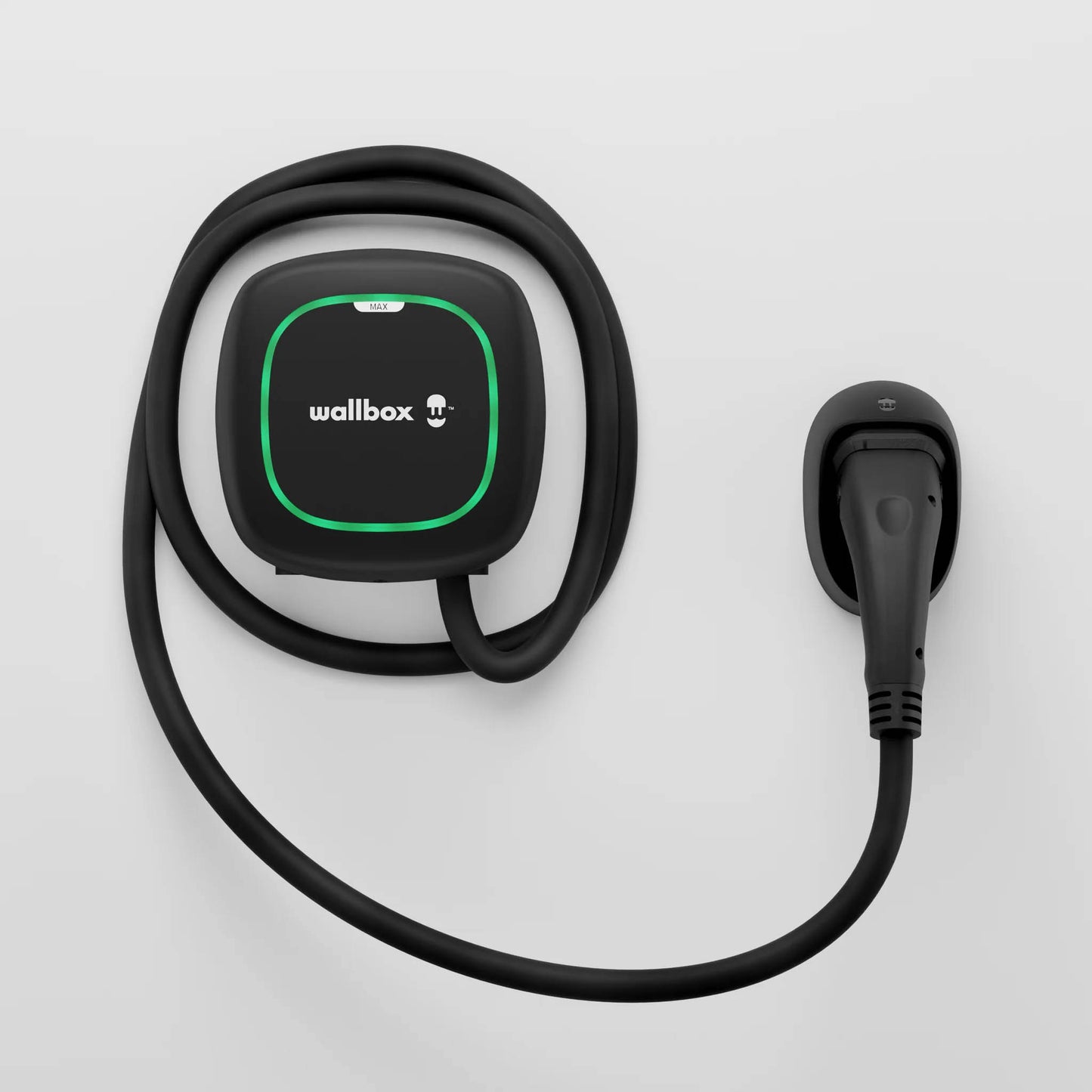

• Always ready, integrated cable for plug-and-go charging

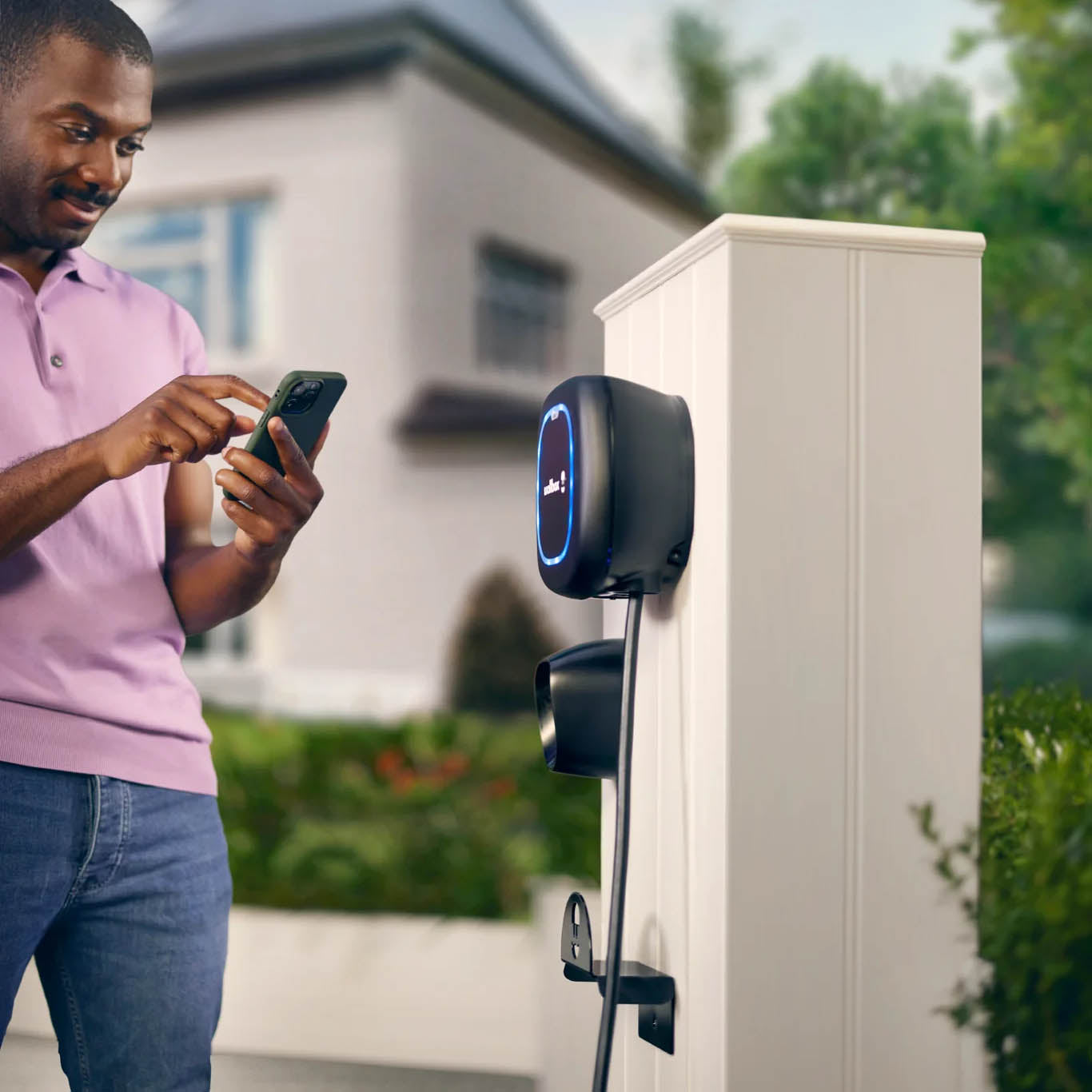

• Connectivity, control via Bluetooth or WiFi with the myWallbox app.
• Adjustable light, you can keep the charging station light bright or dim it to your preference

Energy management accessories make charging more sustainable and cost-effective.

• Utilize the full power of solar panels with solar charging. Avoid high electricity prices by charging your EV with 100% solar energy or a combination of solar and grid energy. The choice is yours.
• The fastest possible charging, without major and expensive electrical system upgrades. With the Power Boost meter, always charge at the maximum possible speed, without having to worry about the load on the electrical system. With the Power Boost meter, dynamic load management ensures that you never exceed your home's current power limit during charging.
• Charge multiple EVs with the same power distribution. Built-in load balancing allows you to charge multiple electric vehicles at once by distributing power among connected chargers.

Technical specifications

• Model: WALLBOXPULSAR-MAX
• Type: Wallbox
• Mounting: wall
• Connector car: TYPE2
• Current: max 32A, 3-Phase (Adjustable 1.8-22kW with hardware & software)
• Power: max 22 kW (3-phase), adjustable.
• Type2 cable length: 7 m
• Usage location: Home & cabin
• Integrated cable
• Size: 198 x 201 x 99 mm (without cable).
• Weight: 1.3kg
• Charging method: AC
• Voltage: 240 V / 400 V
• Operating temperature: -25ºC - +40ºC
• Residual current: Integrated DC protection 6mA
• Manufacturer: Wallbox
• Protection level: IP55, IK10.
• Certifications: CE
• Warranty 2 years
• Available in several colors, ask for more information.

With the Wallbox Pulsar Max charging station, you can charge electric cars equipped with a Type 2 connector at maximum power. The device's power can be adjusted via the app or fixed with a DIP switch during installation.

Easy to install. Built-in charging cable. Decide how fast and when you want to charge your car. The device has built-in B-type residual current protection of 6 mA. An A-type residual current circuit breaker is needed in the switchboard, but it is easy and inexpensive to install.

Before installation, ensure that the electrical grid capacity is sufficient for the charging station or acquire a suitable load management system for the device separately. Installation of the device should be left to a professional electrician. The device can be installed indoors and outdoors (IP54).

Using the charging device has been made easy. No separate authentication or app is needed; just connect the charging cable between the car and the charging station, and charging begins automatically. The charging device's LED lights indicate the charging status and when charging is complete.

All our products have CE certification.

An ideal choice for home charging where capacity is limited.

A new batch with a 7m cable is on the way, delivery time approx. 5-7 business days.
