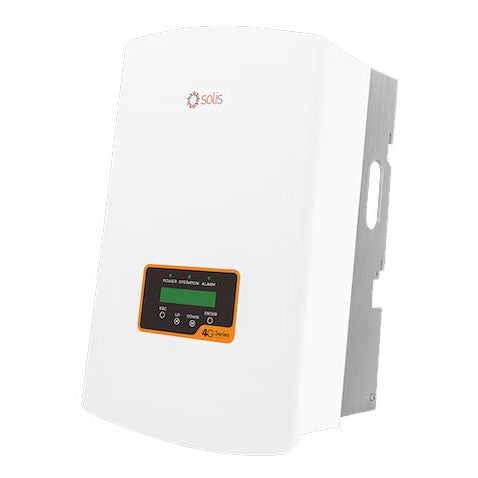

Solis S5-GR3P6K Inverter 6kW

Solis S5 3-phase inverter for photovoltaic systems

This 6kW Solis Inverter is safe to use: Its enclosure class is IP66 and AFCI protection reduces the risk of fire. Remote update and management is possible by re-registering in SolisCloud.

A WIFI/LAN data transfer module is available as an accessory (sold separately).

Characteristics

• Maximum efficiency 98.3%.
• Current up to 16A.
• Wide voltage range and low starting voltage.
• Factory warranty 10 years.
• Compact and easy to install and maintain.
• >150% DC/AC ratio.
• Supports high power modules with lower installation costs.

Technical information

• AC rated output power: 6000 W
• DC connection: Plug connector
• C connection: Plug connector
• Efficiency (EU): 97.7%
• Integrated DC switch: Yes
• Protection class: IP66
• Wireless: NO
• Number of MPP followers: 2 pcs
• Maximum power point voltage range (MPP): 600 V
• Input current DC (max): 16 A
• DC input current per MPP tracker (max): 16 A
• Input current DC per thread input (max.): 16 A
• DC input power (max.): 9000 W
• Dimensions: 563 x 310 mm (H x W)
• Weight: 18 kg
