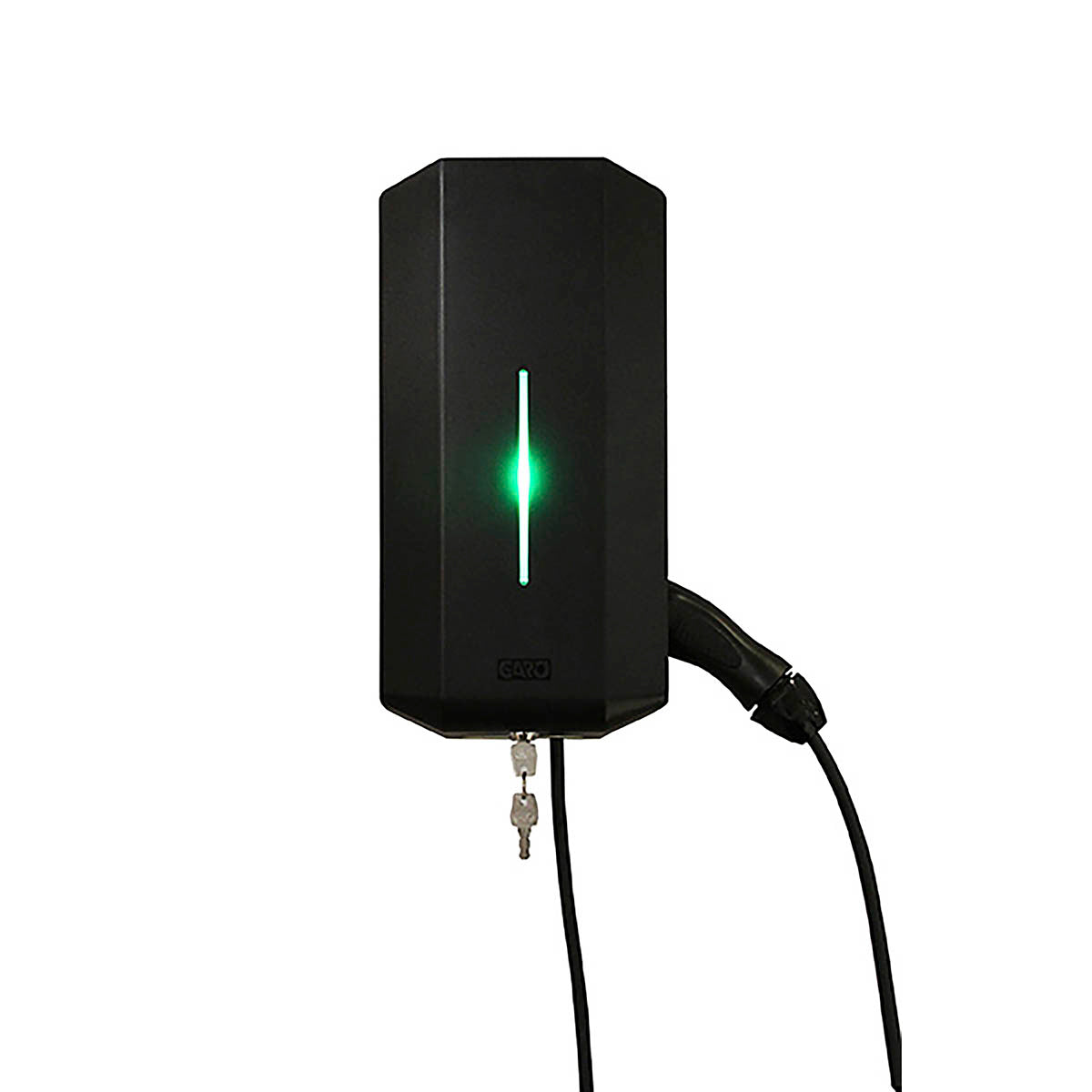

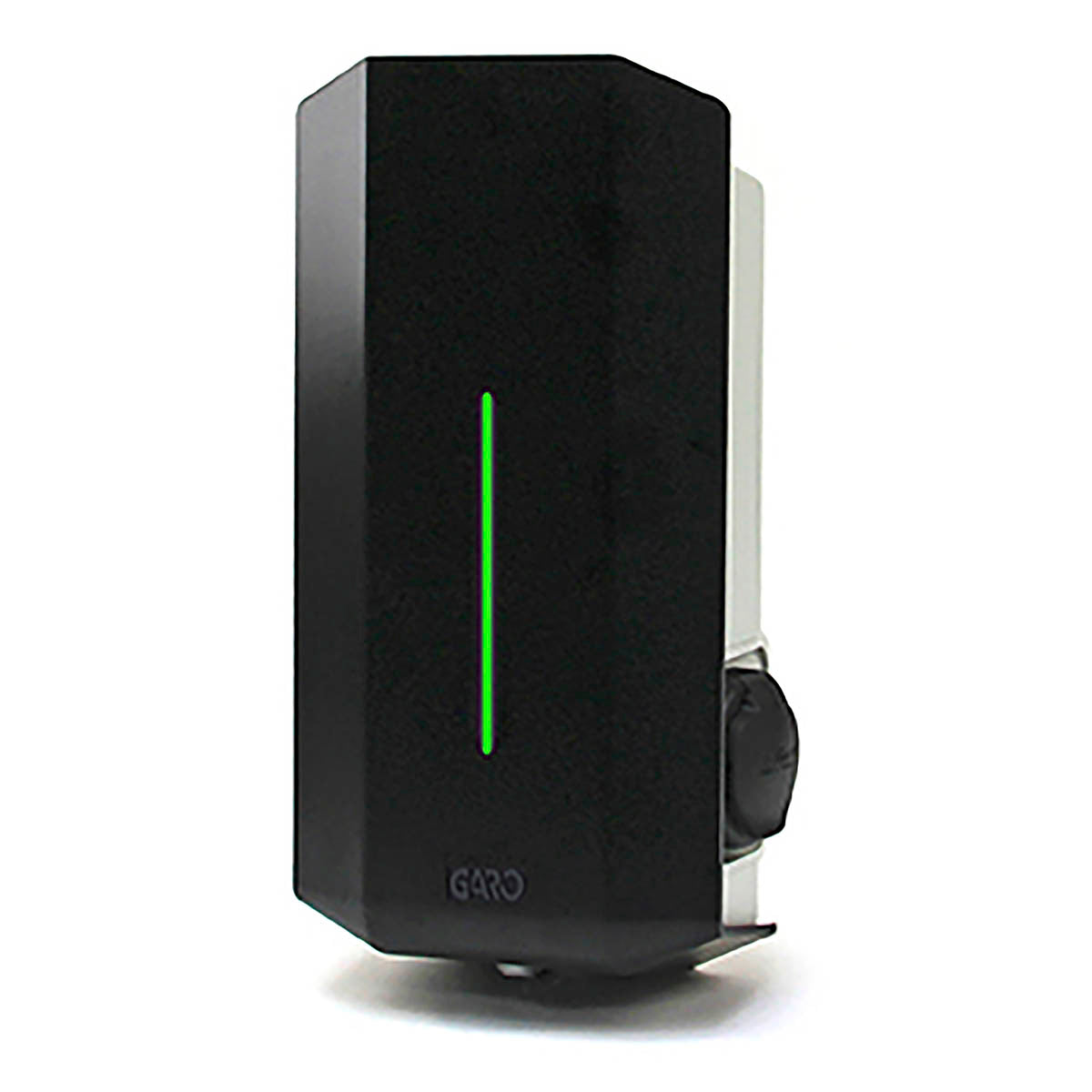

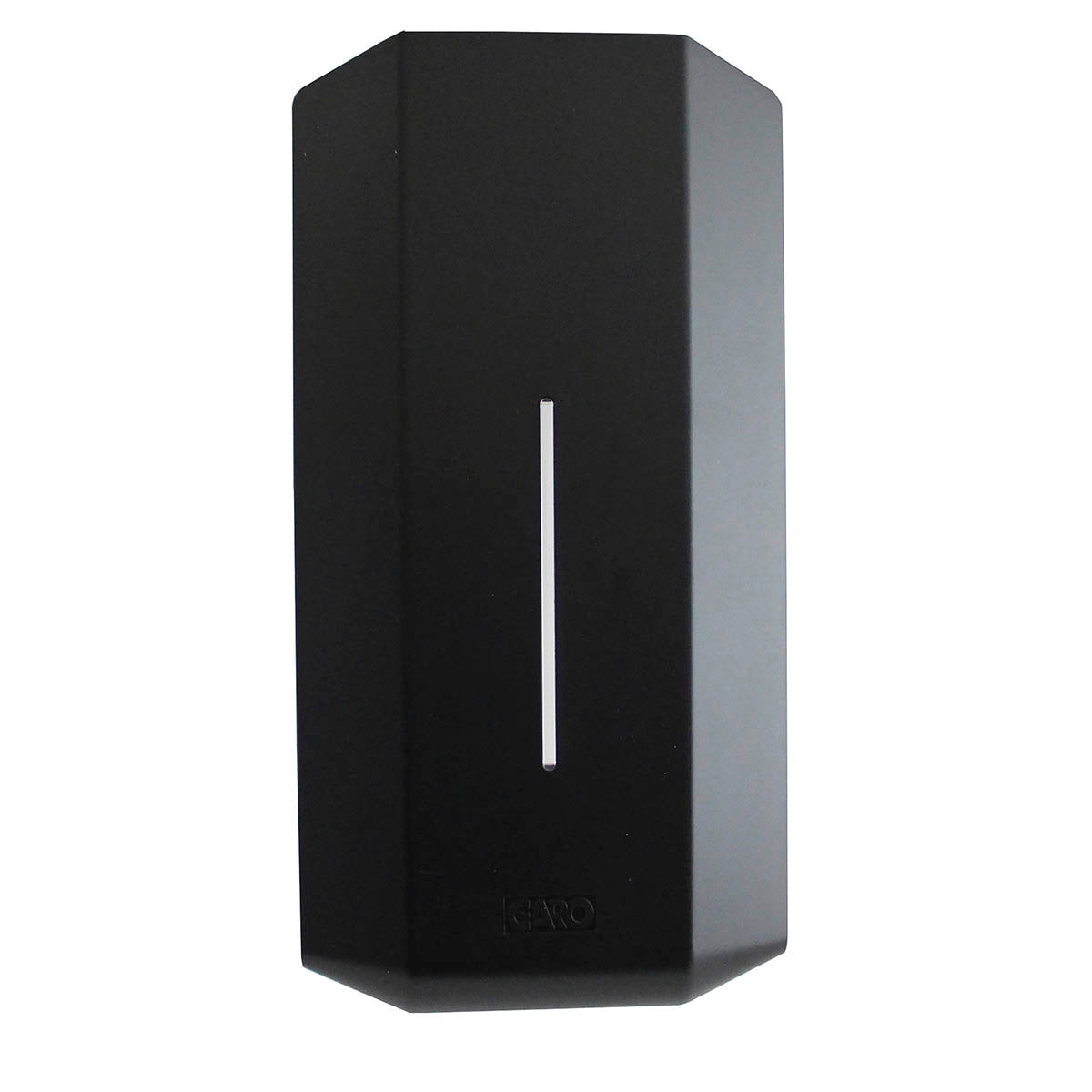

Garo GLBDC-T222FC Charging station (incl. meter, smart card and current transformers) For solar charging

The intelligent Garo Charging Station for electric cars.

The Garo charger is equipped with a Type 2 cable and charging power max. 22kW. A multi-purpose charging device that is suitable for various charging power needs (detached houses, housing associations and companies). Adjustable current with dip switches, so you can lower the current during the installation phase if the power is not enough.

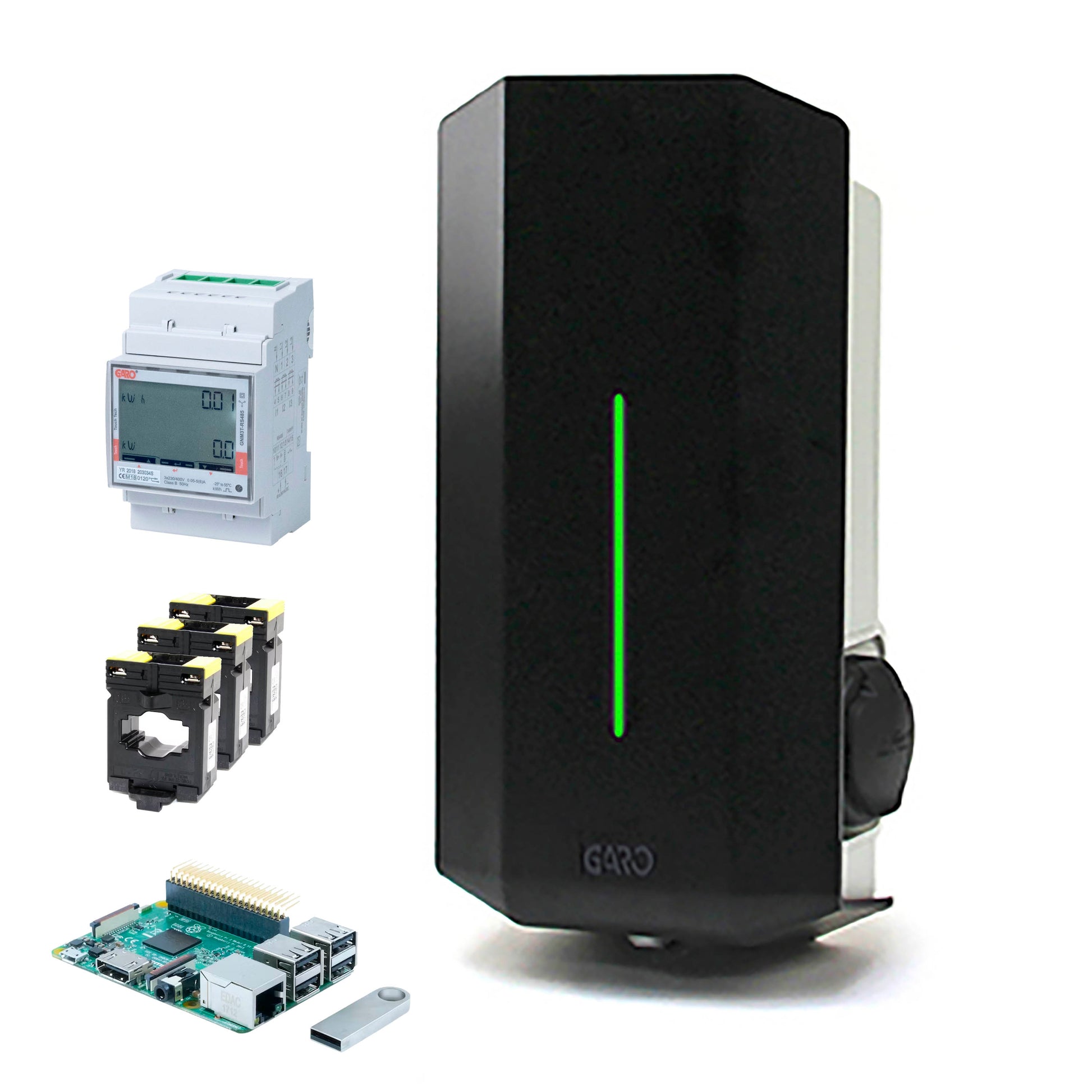

Contain

• Garo charging station GLBDC-T222FC

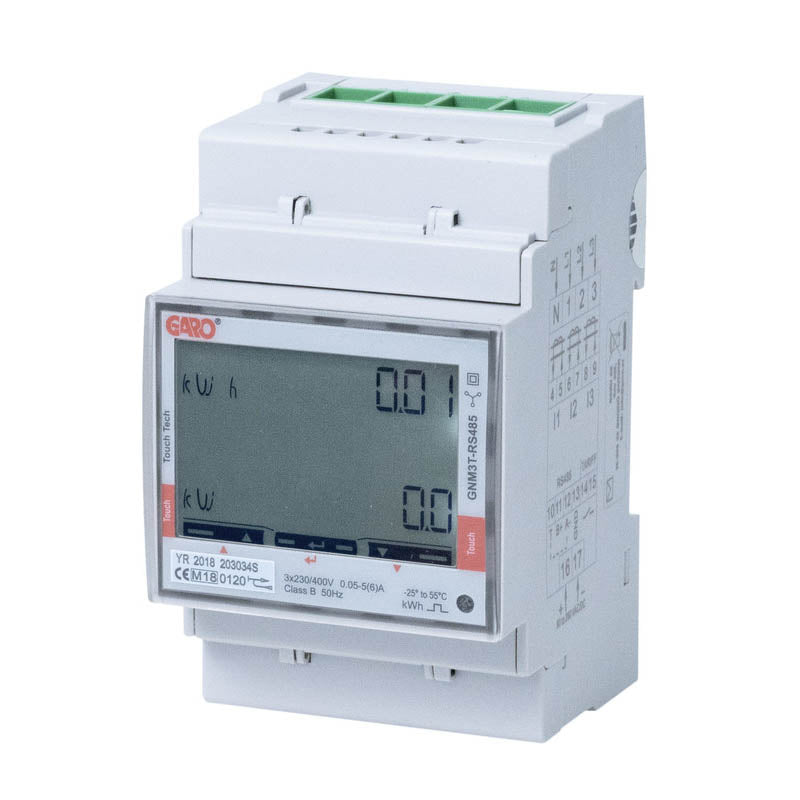

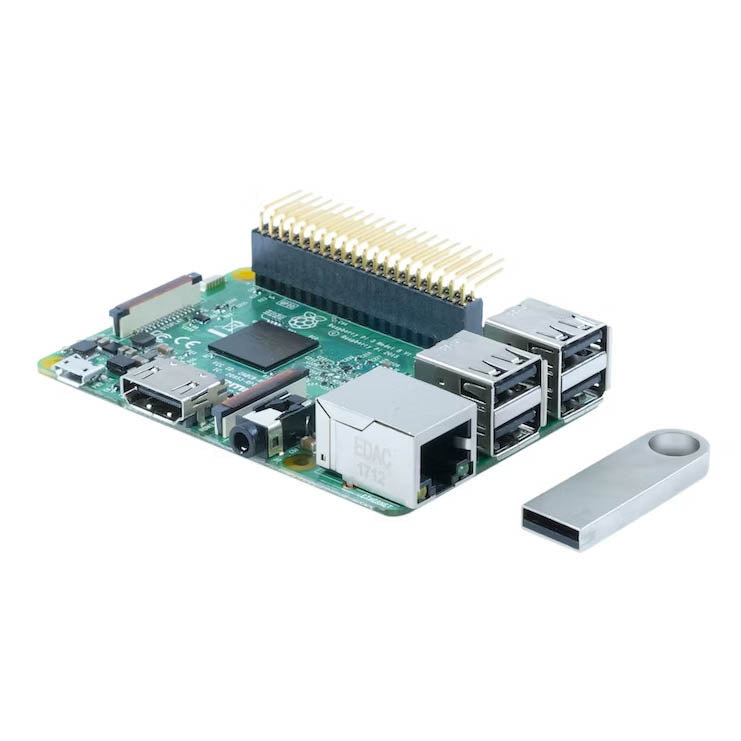

• Garo Wlan Smart Card, Energy Meter GNM3T-RS485 and Current Transformers

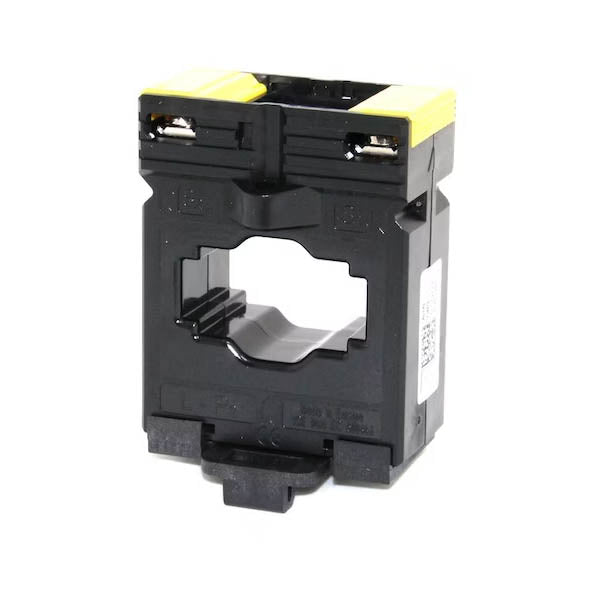

Suitable for a solar power system, load sharing locally with a smart card and metered with a Garo meter. The size of the current transformers is determined by the main fuse size of the switchboard.

The charging device is especially suitable for places where load distribution based on measurement is required. The device can be connected immediately or later to the local load distribution of a meter sold separately, an RFID module or a network connection.

We recommend this device. Charge all electric cars at maximum power. Even if your car doesn't support fast charging yet, it's worth a little extra investment now. Cars evolve and this way you don't need a new charging station in the future. Power can be reduced with dip switches, as an option e.g. Load management as a local solution using a separate installed smart card and RFID identification also as an option. Suitable for systems with solar electricity.

• Model: GARO-GLBDC-T222FC
• Type: Wallbox, smart charging station for electric cars
• Connector car: Type2
• Type2 cable length: 4.5 m
• Place of use: Home/ housing associations/companies
• Current: Adjustable, max 32 A
• Power: 22kW
• Size: W352 x H620 x D130 mm
• Weight: 4.65 kg
• Charging method: AC
• Voltage: 230V
• Residual current: DC direct current monitoring, no A residual current protection (to be installed in the center)
• Manufacturer: GARO
• RFID: Option
• Network connection: WLAN (Option)
• Load distribution: Local with a separate meter (local)
• Protection level: IP44
• Certificates: CE
• Warranty 2 years

Easy to install, very versatile installation options. Before installation, make sure that the capacity and cabling of the electrical network is sufficient for the charging station. The installation of the device should be left to a professional electrician. The device can be installed indoors and outdoors. The charging station is equipped with DC direct current monitoring, A fault current protection must be installed in the electrical center.

The device's warranty is valid when our installation is used or the installation is done by a professional electrician and a record of the installation has been made.

All our products have a CE certificate.
