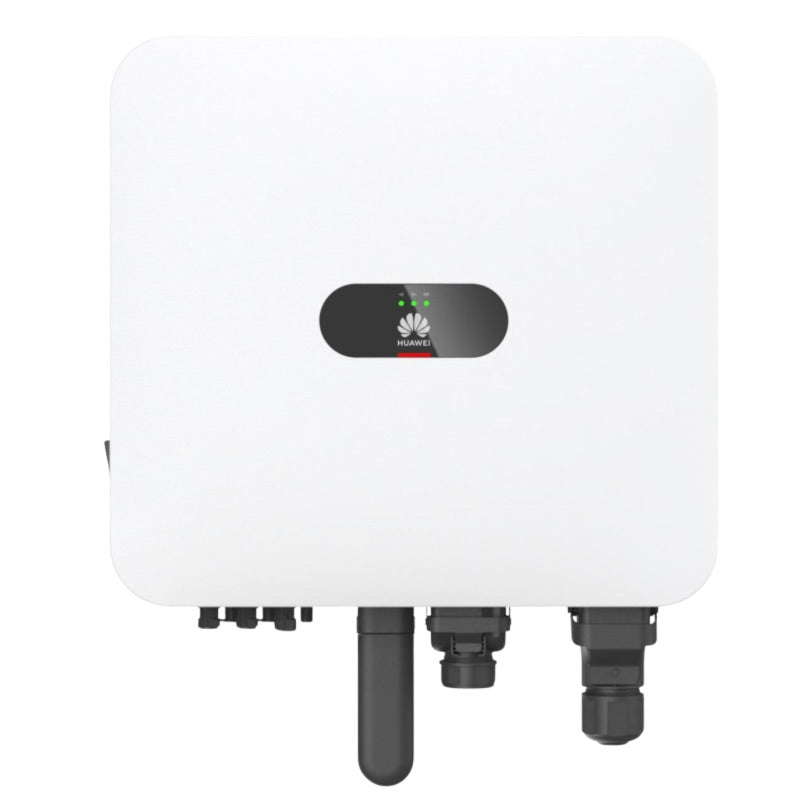

Huawei SUN2000 Inverter 10KTL-M1 10kW

Huawei Solar Power Inverter 10 KTL – Powerful, Easy to Use and Versatile

The Huawei solar power inverter offers a reliable and efficient solution for solar power systems. Its easy and light installation makes it the perfect choice for all kinds of sites, whether it is a residential building or a commercial property.

Versatile features

- Two MPPTs (Maximum Power Point Tracking): Enables several panel chains to be connected to the system, thus optimizing energy production.
- Battery Ready: The inverter can be connected to Huawei's energy storage easily with the Plug & Play function.
- Full Power: 10 KTL inverter provides 10 kW full power AC output and 10 kW full power battery charging.

Excellent efficiency and connections

- Efficiency: 98.1%, which guarantees efficient utilization of energy.
- Connectivity: Supports WLAN, Ethernet and 4G connections, enabling seamless integration and remote monitoring.

Durability and warranty

- Enclosure class: IP65 rated, suitable for outdoor installation.
- Warranty: 10-year product warranty brings peace of mind and reliability.

Smart PV Optimizer compatibility

The Huawei inverter is compatible with the SMART PV OPTIMIZER system, which increases the efficiency and reliability of the system.

Technical information

- Max. DC input power: 15000 W
- Max. input voltage DC: 1100 V
- Max. input current DC: 19.5 A
- Max. input current per MPP follower: 13.5 A
- Max. input current per strand input: 13.5 A
- MPP voltage range: 140 ... 980 V
- AC rated output power: 10000 W
- Number of MPP traces: 2
- Efficiency (EU): 98.1%
- Network monitoring: 3-phase
- Integrated DC switch: Yes
- Data collection: Yes
- Display: No
- Wireless: Yes
- Suitable for outdoor installation: Yes
- Enclosure class (IP): IP65
- Weight: 17 kg
- Dimensions (W x H x D): 525 mm x 470 mm x 146 mm
- 3-phase mains operation: Yes
- Maximum input voltage: 1100 V
