Sungrow 10kW Hybrid Inverter SH10RT-20

Sungrow Three-Phase Hybrid Inverter for Households

The Sungrow SHRT-20 series is an intelligent three-phase hybrid inverter for household solar PV and battery systems. It combines efficient solar power generation, battery storage, and automatic backup power into one compact and easy-to-manage unit.

The SHRT-20 is suitable for both new installations and for expanding existing solar PV systems. Integrated energy management helps maximize self-consumption and reduce dependence on the grid.

Key Features
-Three-phase hybrid inverter (multiple power classes)
-Compatible with high-voltage lithium batteries
-Automatic backup power function for power outages
-Multiple MPPTs for flexible PV array design
-Fast battery charging and discharging to level out consumption peaks
-Remote monitoring and management via iSolarCloud service

Especially Suitable for
-Detached and semi-detached houses
-Households that want to combine solar power and battery storage
-Users who value smart energy management and easy commissioning

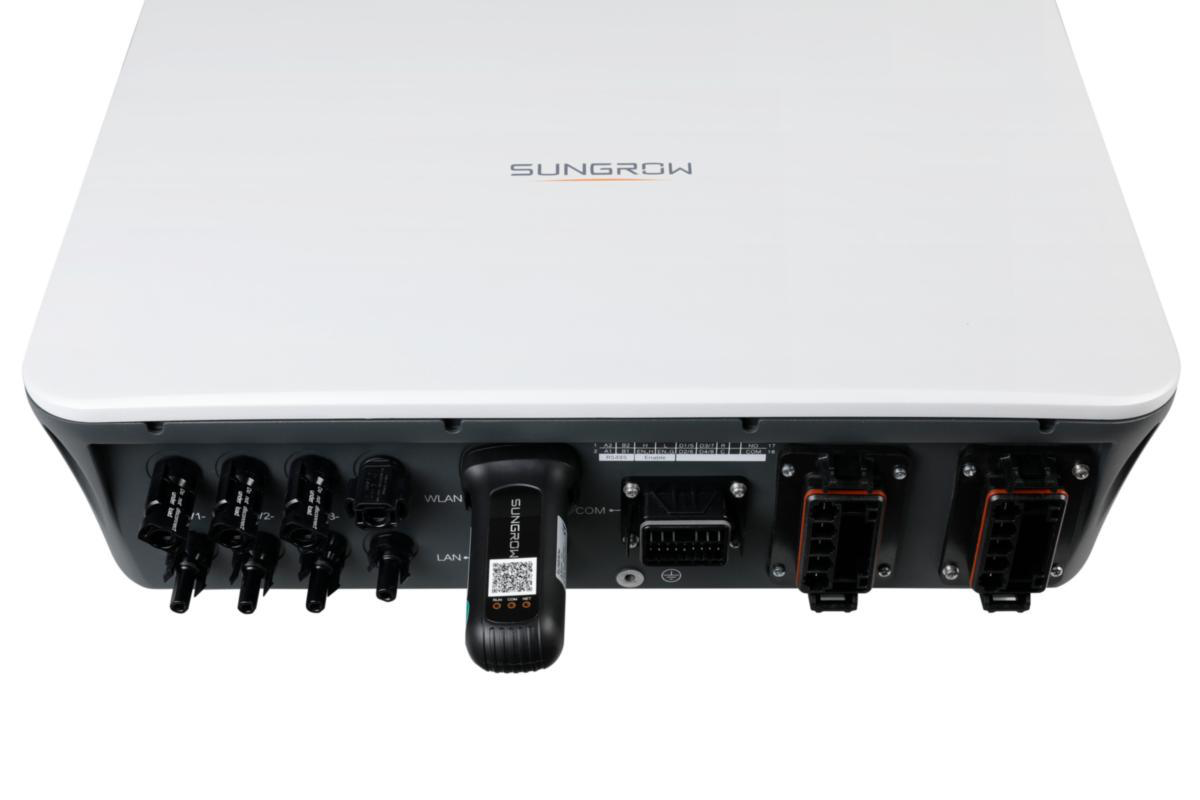

The package includes a Wifi module and an energy meter with current transformers.

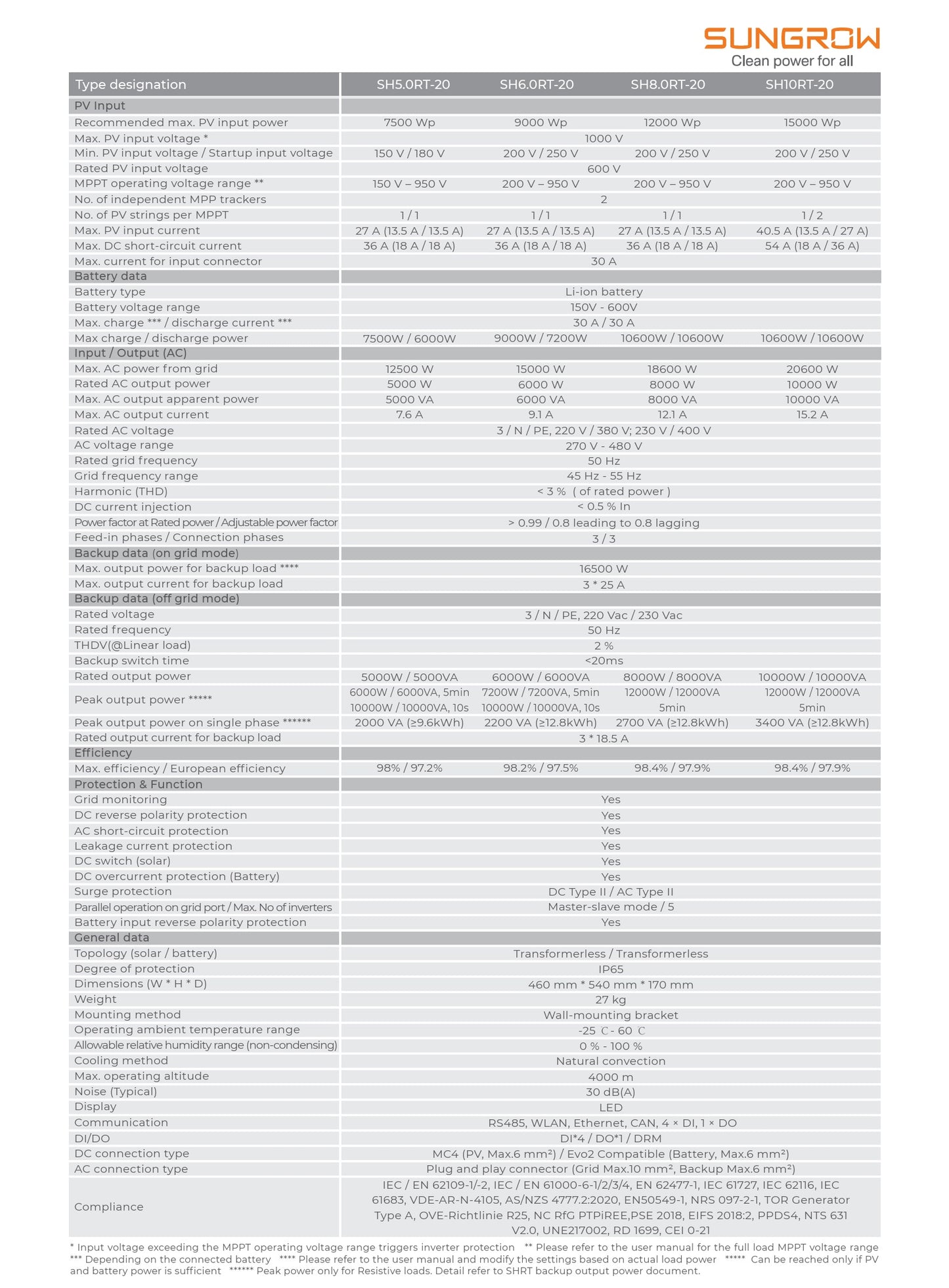

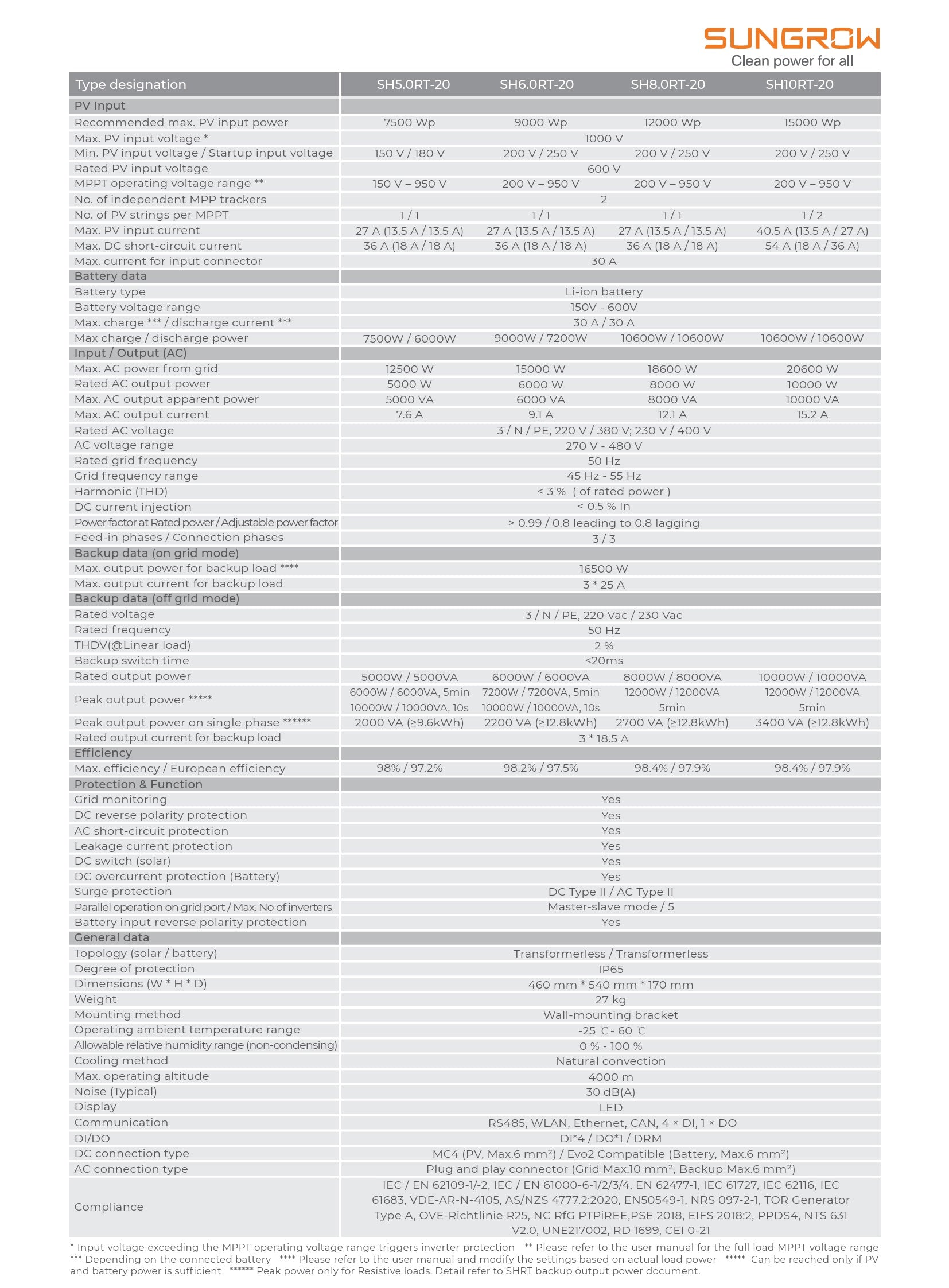

Technical specifications

• Package sizes: 1 PC/6 PCS
• Max. DC input power: 15000
• Number of MPP trackers: 2
• Display: no
• Max. input current DC per MPP tracker: 40.5
• Width: 460 mm
• Height: 540 mm
• Depth: 170 mm
• Input voltage DC max: 1000
• Output voltage AC 50 Hz: 10000
• Efficiency (EU): 97.9
• Weight: 27
• Max. efficiency: 98.4
• Short-circuit current max per MPPT: 54 A
• Maximum power point voltage range (MPP): 200-950
• Suitable for emergency power operation: yes
• Degree of protection (IP): IP65
• Grid monitoring: 3-phase
• Input voltage type: DC
• Wireless: yes
• Data acquisition: yes
• Ethernet: yes
• Internal battery: no
• Suitable for outdoor installation: yes
• Integrated DC switch: yes
